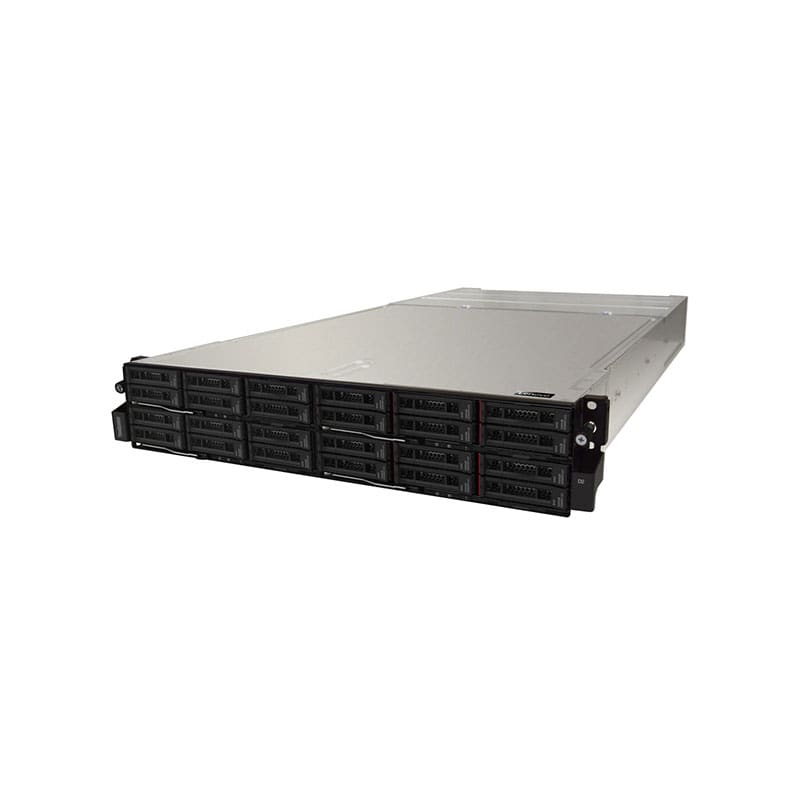

7X21A00XNA Lenovo Thinksystem SD530 5118 16G

7X21A00XNA Overview

The Lenovo ThinkSystem SD530 is an ultradense and economical two-socket server in a 0.5U rack form factor. With four SD530 server nodes installed in the ThinkSystem D2 enclosure, and the ability to cable and manage up to four D2 enclosures as one asset, you have an ideal high-density 2U four-node (2U4N) platform for enterprise and cloud workloads.


Buy Now
Availability: In Stock

7X21A00XNA Technical Specifications

Lenovo Thinksystem SD530 5118 16G

General Information
Product Name Thinksystem SD530 5118 16G
Product Line ThinkSystem
Product Series SD530
Product Model 7X21A00XNA
Product Type Server
Controller Type Serial ATA/600
RAID Supported Yes
RAID Levels 0, 1, 5, 10, 50
Display & Graphics
Graphics Controller Manufacturer Matrox
Graphics Controller Model G200
Graphics Memory Capacity Up to 16 MB
I/O Expansions
Number of Total Expansion Bays 6
Number of Internal 2.5″ Bays 6
Hot Swappable Bays Yes
Standard Memory 16 GB
Memory Technology TruDDR4
Number of Occupied Memory Slots 1
Network & Communication
Ethernet Technology 10 Gigabit Ethernet
Total Hard Drive Capacity No
Processor & Chipset
Number of Processors Supported 2
Number of Processors Installed 1
Processor Manufacturer Intel
Processor Type Xeon Gold
Processor Model 5118
Processor Core Dodeca-core (12 Core)
Processor Speed 2.30 GHz
Operating System No
Physical Characteristics
Form Factor Rack
Rack Height 0.5U
Height 1.7″
Width 8.8″
Depth 22.2″
