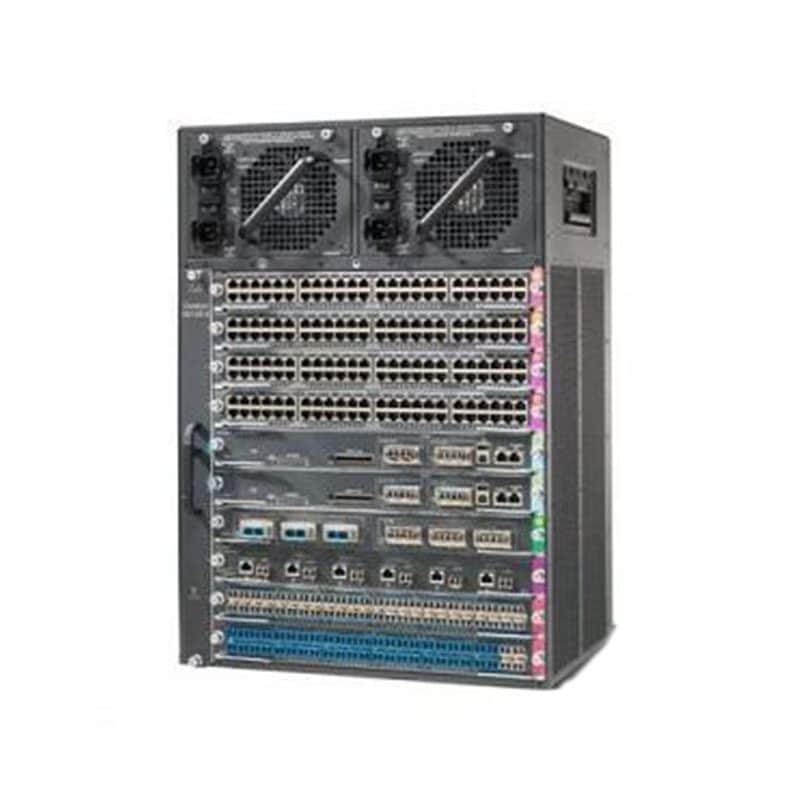

Refurbished C1-C4510RE-S7+96V+ Cisco ONE Catalyst
Refurbished C1-C4510RE-S7+96V+ Overview
The Cisco Catalyst 4500 Series Switches enable Borderless Networks, providing high performance, mobile, and secure user experiences through Layer 2-4 switching investments. They enable security, mobility, application performance, video, and energy savings over an infrastructure that supports resiliency, virtualization, and automation. Cisco Catalyst 4500 Series Switches provide borderless performance, scalability, and services with reduced total cost of ownership (TCO) and superior investment protection.
$10,805
Refurbished C1-C4510RE-S7+96V+ Technical Specifications
Cisco ONE Catalyst 4510R+E Bundle Switch 96 Ports Managed Rack Mountable
Product Line Cisco ONE Catalyst
Product Series C4510R
Product Type Switch Bundle
Cisco ONE Catalyst 4510R+E – Bundle – switch – 96 ports – managed – rack-mountable – with Cisco Catalyst 4500E Supervisor Engine 7-E, 2x Cisco Line Cards (WS-X4748-RJ45V+E)
Device Type
Switch – 96 ports – managed – with Cisco Catalyst 4500E Supervisor Engine 7-E, 2x Cisco Line Cards (WS-X4748-RJ45V+E)
Enclosure Type
Rack-mountable 14U
Subtype
Gigabit Ethernet
Ports
96 x 10/100/1000
4 x SFP+
Power Over Ethernet (PoE)
PoE+
Performance
IPv4 switching: 250 Mpps ¦ IPv6 switching: 125 Mpps ¦ Switching capacity: 848 Gbps ¦ Per-slot switching capacity: 48 Gbps
Capacity
IPv4 routes: 256000 ¦ IPv6 routes: 128000 ¦ QoS hardware entries: 128000 ¦ Active VLANs: 4094 ¦ Spanning Tree Protocol instances: 10000 ¦ Switched virtual interfaces (SVIs): 4094
MAC Address Table Size
55K entries
Routing Protocol
PIM-SM, PIM-DM, PIM-SSM
Remote Management Protocol
RMON 1, RMON 2
Features
Modular design, power over Ethernet (PoE), auto-negotiation, trunking, VLAN support, IPv6 support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Link Aggregation Control Protocol (LACP), Class of Service (CoS), Flexible NetFlow (FNF)
Compliant Standards
IEEE 802.3af, IEEE 802.3x, IEEE 802.1ae, IEEE 802.3at, IEEE 802.3az
Power Redundancy
Optional
Dimensions (WxDxH)
17.3 in x 12.5 in x 24.3 in
