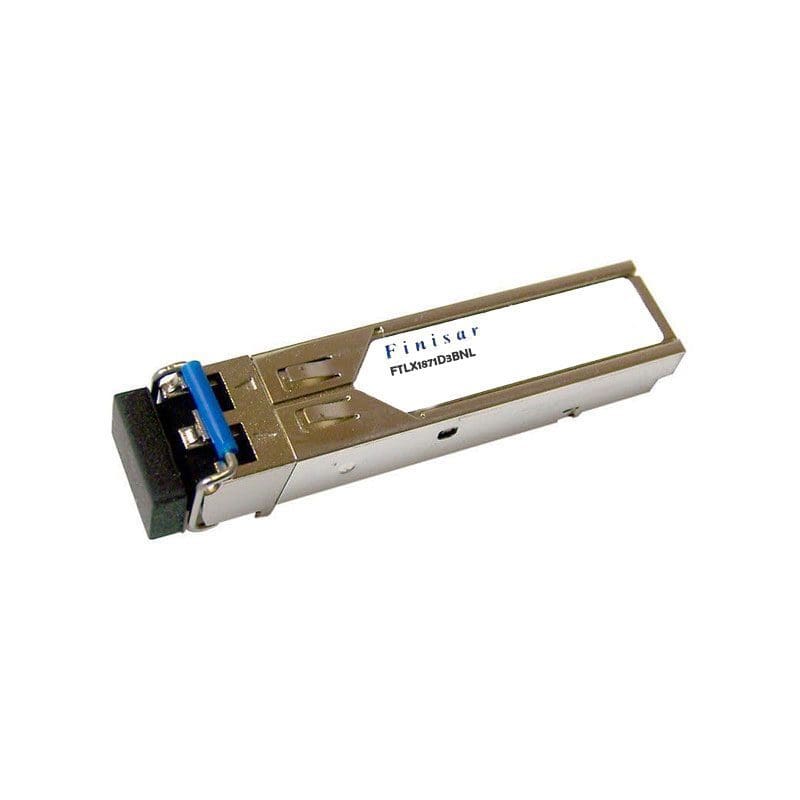

FTLX1871D3BNL Finisar TX/RX Optical Fiber 11.3Gbps
FTLX1871D3BNL Overview
Finisar’s FTLX1871D3BNL transceivers are Enhanced Small Form Factor Pluggable. SFP+ transceivers designed for use in 10-Gigabit multi-rate links up to 80km of G.652. single mode fiber. They are compliant with SFF-8431.
$726
Buy Now
FTLX1871D3BNL Technical Specifications
TX/RX Optical Fiber 11.3Gbps
Manufacturer: Finisar
Hot plug gable SFP Plus footprint
Supports 8.5 and 9.95 to 11.3 Gb/s 10 Gigabit Ethernet
80km link length
-5/85°C case temperature range
Cooled 1550nm EML laser
Limiting electrical interface receiver
LC Duplex connector
Built-in digital diagnostic functions
Form Factor: SFP+
Rise Time (ns): 0.028(Min)
Maximum Fall Time (ns): 0.028(Min)
Minimum Operating Supply Voltage (V): 3.14
Typical Operating Supply Voltage (V): 3.3
Maximum Operating Supply Voltage (V): 3.46
Minimum Operating Temperature (°C): -5
Maximum Operating Temperature (°C): 85
Mounting: Snap Fit To Panel
Package Height: 11.95
Package Width: 14.7
Package Length: 56.5
PCB changed: 20
Pin Count: 20
