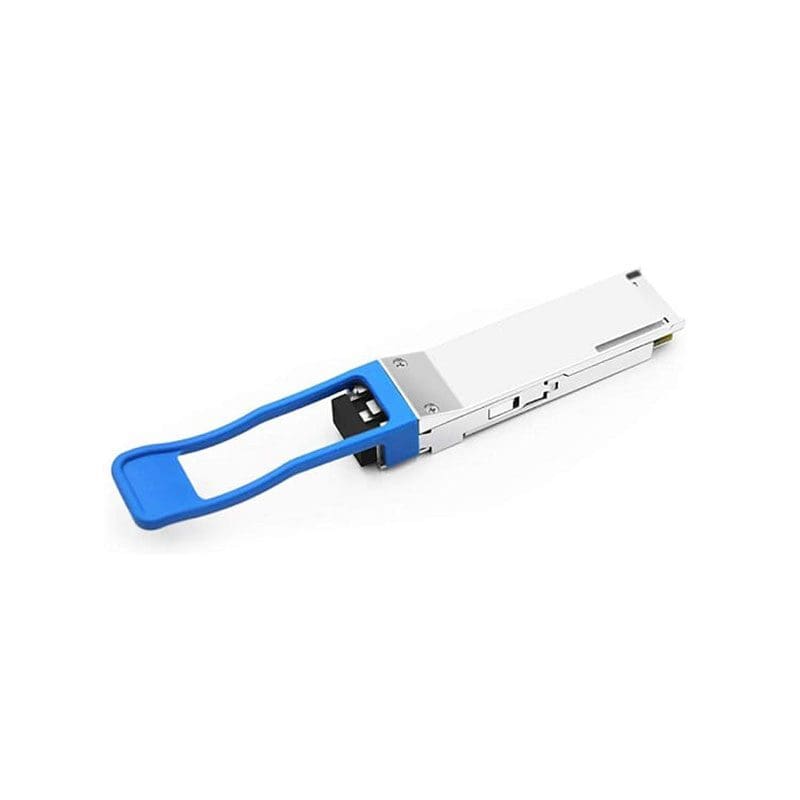

QSFPP-4X10GE-LR Juniper Networks QSFP+ Transceiver Module
QSFPP-4X10GE-LR Overview
QSFPP-4X10GE-LR Juniper Networks QSFP+ Transceiver Module 40 Gigabit LAN.Juniper Networks 10G-40G quad small form-factor pluggable optical transceiver (QSFPP) second generation PTX Series PICs enable service providers to deploy high density 10GbE/40GbE interfaces in a wide variety of service provider, data center interconnect, Internet exchange, and public sector applications. Using configurable LAN and WAN PHY personality for 10GbE applications with optical channel transport unit (OTU2) framing via breakout cables, the 10G-40G PICs can also deliver 40GbE functionality with OTU3 wrapper. This unprecedented flexibility allows for mix-and-match of 10GbE and 40GbE applications on a single card.
$897
QSFPP-4X10GE-LR Technical Specifications
Juniper Networks QSFP+ Transceiver Module 40 Gigabit LAN
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks
Packaged Quantity :1
Networking
Type :QSFP+ Transceiver Module
Form Factor :Plug-in module
Connectivity Technology :Wired
Cabling Type :Ethernet 40GBase-LR
Data Link Protocol :40 Gigabit Ethernet
Data Transfer Rate :40 GBps
Interface Provided
Interfaces :1 x Ethernet 40GBase-LR female
Compatibility
Compatible With :Juniper Networks 5G Universal Routing Platform MX10003 ¦ Juniper Networks MX-series MX10008, MX10016, MX2010, MX2020, MX204, MX240, MX480, MX960 ¦ Juniper Networks PTX Series PTX10008, PTX5000
