UCS-SPR-C240M4-V2 Cisco Systems Ucs C240M4SX with 2XE52650V3
UCS-SPR-C240M4-V2 Overview

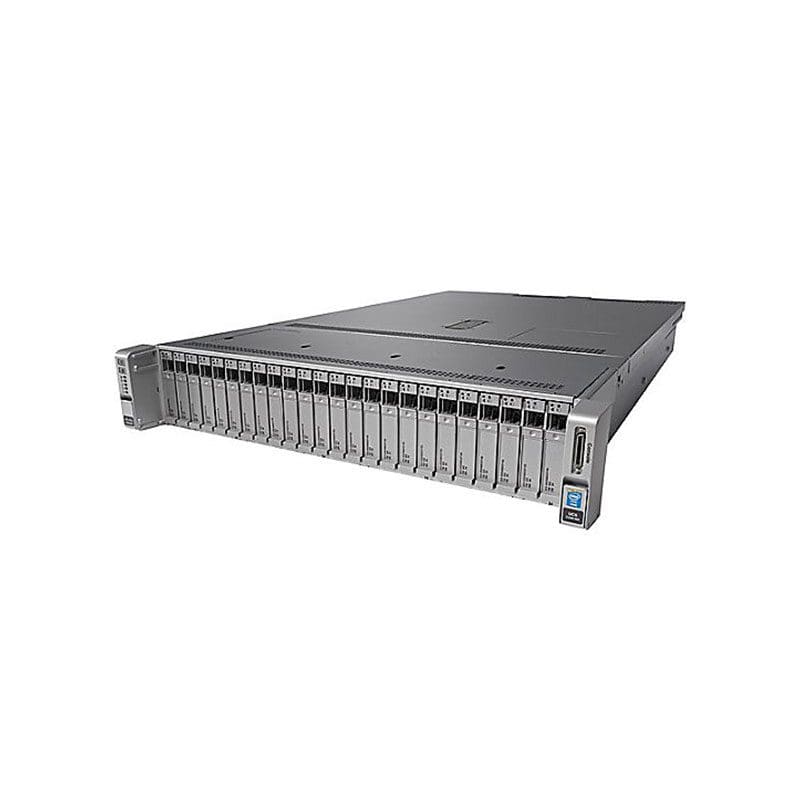

The Cisco UCS® C240 M4 Rack Server is our newest 2-socket, 2-rack-unit (2RU) rack server (Figure 1.) It offers outstanding performance and expandability for a wide range of storage and I/O-intensive infrastructure workloads, from big data to collaboration. The enterprise-class Cisco UCS C240 M4 server extends the capabilities of the Cisco Unified Computing System™ (Cisco UCS) portfolio in a 2RU form factor with the addition of the Intel® Xeon® processor E5-2600 v3 product family, which delivers a superb combination of performance, flexibility, and efficiency.
$4,915
UCS-SPR-C240M4-V2 Technical Specifications
Cisco Systems Ucs C240M4SX with 2XE52650V3
General Information
Product Name Cisco Ucs C240M4SX with 2XE52650V3 2X8GB Mraid
Manufacturer Part Number UCS-SPR-C240M4-V2
Product Series C240 M4
Product Type Server
Controllers
Controller Type 12Gb/s SAS
Serial Attached SCSI (SAS)
Serial ATA
RAID Supported Yes
Memory
Standard Memory 16 GB
Memory Technology DDR4 SDRAM
Number of Total Memory 24 DDR4 Slots
Network & Communication
Ethernet Technology Gigabit Ethernet
Power Description
Input Voltage 120 V AC
230 V AC
Number of Power Supplies Installed 2
Maximum Power Supply Wattage 1200 W
Processor & Chipset
Number of Processors Supported 2
Number of Processors Installed 2
Processor Manufacturer Intel
Processor Type Xeon
Processor Model E5-2650v3
Processor Core Deca-core (10 Core)
Processor Speed 2.30 GHz
Physical Characteristics
Form Factor Rack
Rack Height 2U Rack Mount
Other Information
Product Family C240 M4
Cache 25 MB
Memory Card Reader Yes
64-bit Processing Yes
Chipset Manufacturer Intel
Chipset Model C610
QuickPath Interconnect 9.60 GT/s
Hyper-Threading Yes
Number of Total Expansion Slots 3
Number of PCI Express x8 Slots 2
Number of PCI Express x16 Slots 1
