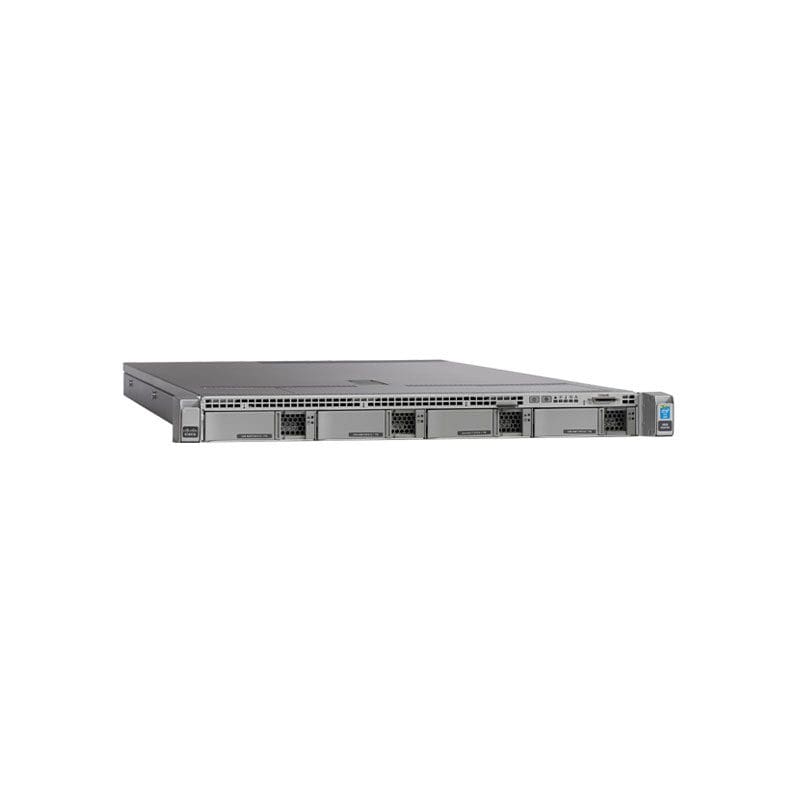

UCSC-C22-M3L Cisco UCS C22 M3 High-Density Rack-Mount Server

UCSC-C22-M3L Technical Specifications

Cisco UCS C22 M3 High-Density Rack-Mount Server

Bay Provided
Form Factor :3.5″
Free Qty :4
Total Qty :4 Bays
Chassis
Form Factor :Rack-mountable
Hot-Swap Bays Qty :4
Manufacturer Form Factor :Rack-mountable
Server Storage Bays :Hot swap
Server Swappable Drive Form Factor :3.5″
Server Swappable Drive Form Factor (metric) :8.9 cm
Server Swappable Drive Interface :SATA
Dimensions & Weight
Depth :26 in
Height :1.7 in
Weight :23.48 lbs
Width :16.9 in
Display
Type :None.
Environmental Parameters
Humidity Range Operating :10 – 90% (non-condensing)
Max Operating Temperature :104 °F
Min Operating Temperature :41 °F
Expansion Bays
Form Factor (metric) :8.9 cm
Type :Hot-swap
Expansion Slots
Size :Half-length
Type :PCIe 3.0 x8
Size :Half-length, full-height
Type :PCIe 3.0 x16
Type :CPU
Type :Memory
Hard Drive
Type :No HDD
Hard Drive (2nd)
Type :None
Hard Drive (3rd)
Type :None
Header
Brand :Cisco
Compatibility :PC
Manufacturer :Cisco Unified Computing
Model :C22 M3 High-Density Rack-Mount Server Large Form Factor
Packaged Quantity :1
Product Line :Cisco UCS
Interface Provided
Location :2 front, 4 rear
Qty :6
Type :USB 2.0
Qty :1
Type :Serial
Qty :2
Type :LAN (Gigabit Ethernet)
Type :Management (NIC)
Type :VGA
Mainboard
Chipset Type :Intel C600
Processor Socket :LGA1356 Socket
Miscellaneous
Color Category :Gray
Compliant Standards :AS/NZS 60950-1, BSMI CNS 13438 Class A, CISPR 22 Class A, CSA C22.2 No. 60950-1 Second Edition, EN 300 386, EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3, EN55022 Class A, EN55024, GB 4943, ICES-003 Class A, IEC 60950-1 Second Edition, UL 60950-1 Second Edition, VCCI Class A ITE
Height (Rack Units) :1
Included Accessories :Rack rail kit
Networking
Data Link Protocol :Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet Controller(s) :Intel I350
Ethernet Ports :2 x Gigabit Ethernet
Form Factor :Integrated
Remote Management Protocol :IPMI 2.0
Optical Storage
Drive Type :No optical drive
Type :None
Optical Storage (2nd)
Type :None
Power Device
Installed Qty :0
Max Supported Qty :2
Power Redundancy :Optional
Type :Power supply
