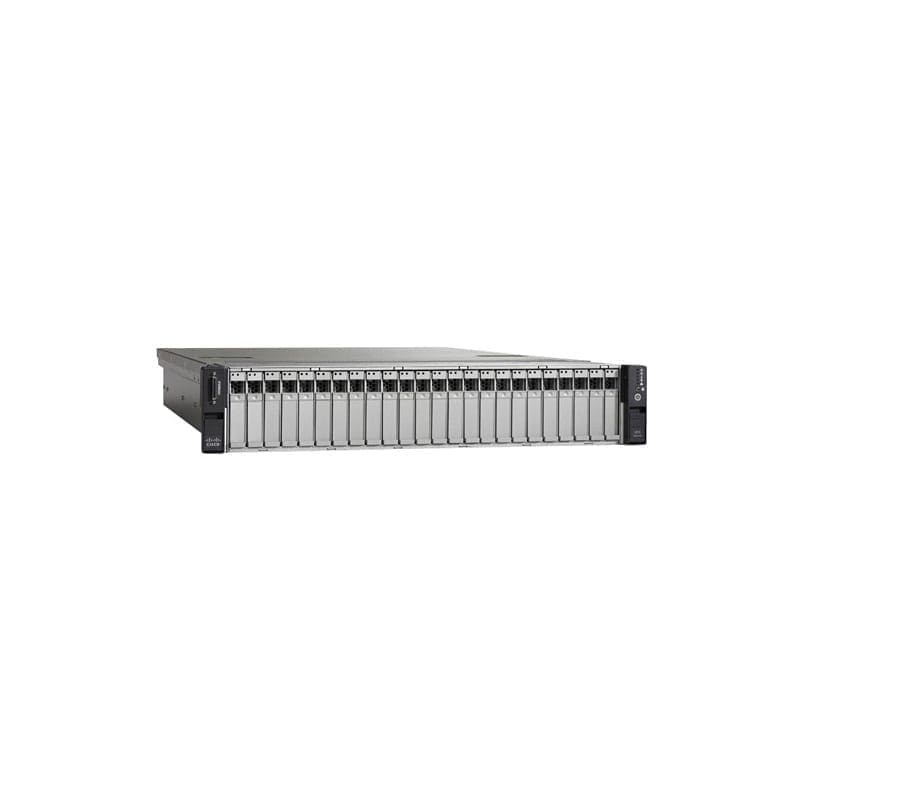

UCSC-C240-M3S Cisco UCS C240 M3 High-Density Rack-Mount Server

UCSC-C240-M3S Technical Specifications

Cisco UCS C240 M3 High-Density Rack-Mount Server

Bay Provided
Form Factor :2.5″
Free Qty :24
Total Qty :24 Bays
Chassis
Form Factor :Rack-mountable
Hot-Swap Bays Qty :24
Manufacturer Form Factor :Rack-mountable
Server Storage Bays :Hot swap
Server Swappable Drive Form Factor :2.5″
Server Swappable Drive Form Factor (metric) :6.4 cm
Server Swappable Drive Interface :SATA/SAS
Dimensions & Weight
Depth :28 in
Height :3.4 in
Weight :32.19 lbs
Width :17.5 in
Display
Type :None.
Type :None.
Environmental Parameters
Humidity Range Operating :10 – 90% (non-condensing)
Max Operating Temperature :104 °F
Min Operating Temperature :32 °F
Expansion Bays
Form Factor (metric) :6.4 cm
Type :Hot-swap
Expansion Slots
Size :Half-length
Size :Half-length, full-height
Type :PCIe 3.0 x16
Size :Three-quarter-length, full-height
Type :CPU
Type :DIMM 240-pin
Type :PCIe 3.0 x8
Hard Drive
Type :No HDD
Hard Drive (2nd)
Type :None
Hard Drive (3rd)
Type :None
Header
Brand :Cisco
Compatibility :PC
Manufacturer :Cisco Unified Computing
Model :C240 M3 High-Density Rack-Mount Server Small Form Factor
Packaged Quantity :1
Product Line :Cisco UCS
Interface Provided
Connector Type :RJ-45
Interface :Ethernet 10Base-T/100Base-TX/1000Base-T
Type :Management
Qty :1
Type :Serial
Qty :2
Type :USB 2.0
Qty :4
Type :LAN (Gigabit Ethernet)
Type :KVM
Type :VGA
