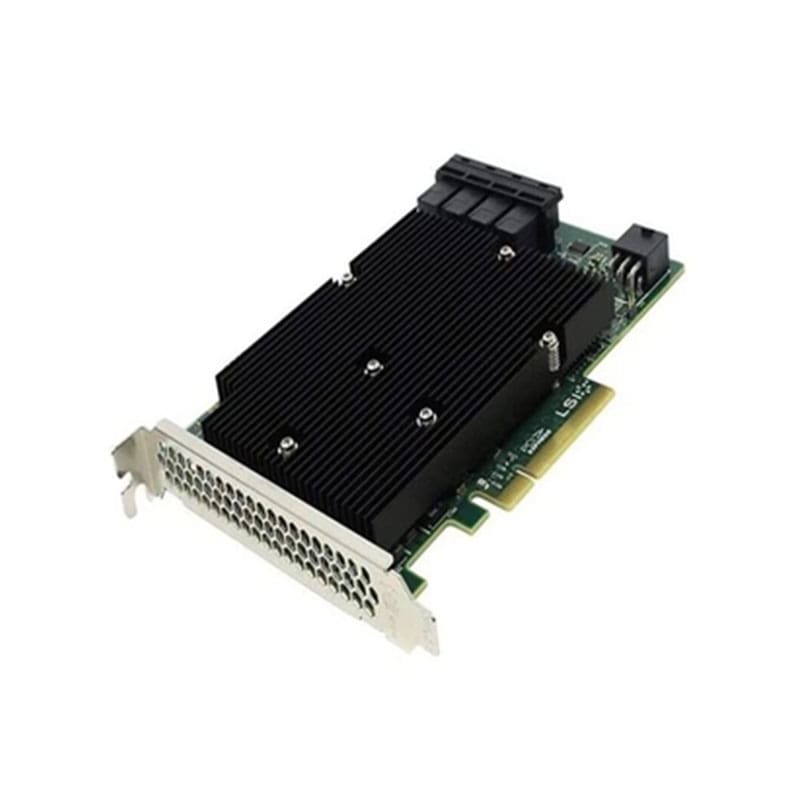

05-25600-00 Broadcom PCI-E 3.0 SAS/SATA 12GBPS Host Bus Adapter
05-25600-00 Overview
The Broadcom 05-25600-00 PCI-E 3.0 SAS/SATA 12GBPS Host Bus Adapter is a computer hardware device that enables a computer to communicate with and control storage devices such as hard drives and solid-state drives. It is commonly used in servers and high-performance computing environments to provide fast and reliable data transfer between the computer and storage devices.
The Broadcom Host Bus Adapter uses the PCI Express 3.0 interface to connect to the computer’s motherboard. PCI Express 3.0 is a high-speed serial computer expansion bus that provides faster data transfer rates than previous generations of PCI Express.
$275
Buy Now
05-25600-00 Technical Specifications
Broadcom 12GBPS 16 Ports PCI-E 3.0 X8 SAS Host Bus Adapter
Manufacturer: Broadcom
Part Number or SKU# 05-25600-00
Device Type: Controller
Technical Information
Host Bus Type : x8 Lane Pci Express® 3.0
Physical Dimensions : 4.4 X 6.1
Internal Ports : 16
Cable Support : passive Copper, Active Optical
Data Transfer Rates : 12GBPS Sas 3.0 Compliant
Devices Supported : 1024 Non-raid Sata/sata Devices Per Controller
Fusion Mpt Support : fusion Mpt™ 2.5
I/o Controller : 2 Sas 3008
Internal Connectors : 4 Mini-sas Hd Sff8643
Mtbf : 2,500,000 Hours
Operating Humidity : 5% To 90% Non-condensing
Operating Temperature : 0°c To 55°c
Operating Voltage : +12v +/-8% 3.3v +/-9%
