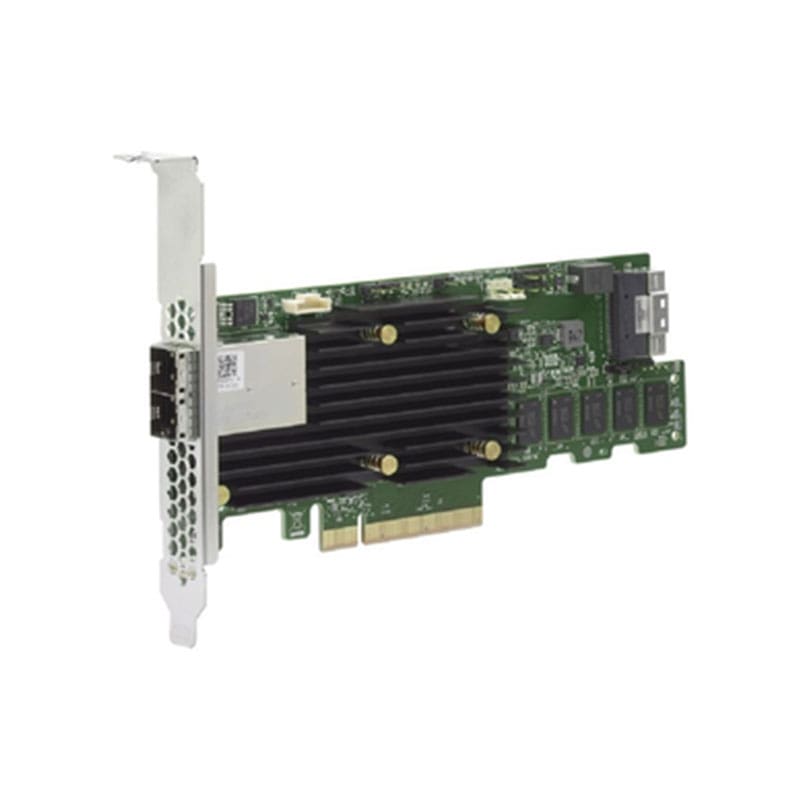

05-50076-00 Broadcom PCI-E SAS-SATA Storage Adapter
05-50076-00 Overview
In the ever-evolving landscape of storage technology, the Broadcom 05-50076-00 Megaraid 9500 Storage Adapter stands out as a formidable player. This storage adapter, equipped with advanced features such as Peripheral Component Interconnect Express (PCI-E), Serial-Attached SCSI (SAS), and Serial Advanced Technology Attachment (SATA), is designed to meet the growing demands of modern data storage. In this comprehensive exploration, we will delve into the intricacies of the Broadcom Megaraid 9500, exploring its key features, functionalities, and the broader implications it holds in the realm of storage solutions.
$1,675
Buy Now
05-50076-00 Technical Specifications
Broadcom Megaraid 9500 Peripheral Component Interconnect Express (PCI-E) Serial-Attached SCSI (SAS) Serial Advanced Technology Attachment (SATA) Gen 4.0 Tri-mode Storage Adapter
Manufacturer: Broadcom
Part Number or SKU# 05-50076-00
Product Type: Raid Controller
Controller
Technical Information of Raid Controller
Port Count 8 Internal, 8 Externa
Connectors One X8 Sff-8654 2 X4 Sff-8644
Host Interface X8 PCIe Gen 4.0
Storage Interface 12GB/S SAS, 6GB/S SATA, GEN 4.0 PCI-E (NVME)
Raid On Chip Controller(roc) SAS3916
Max Devices Per Controller SAS/SATA: 240NVME: 32
Cache Size 8 GB
Cache Protection Cachevault, Cvpm05
Raid Features for this Internal Controller
Raid Levels 0, 1, 5, And 6
Raid Spans 10, 50, And 60
Jbod Mode With R0/1/10 And Jbod For SDS Environments
Online Capacity Expansion (OCE)
