0F38358 Technical Specifications

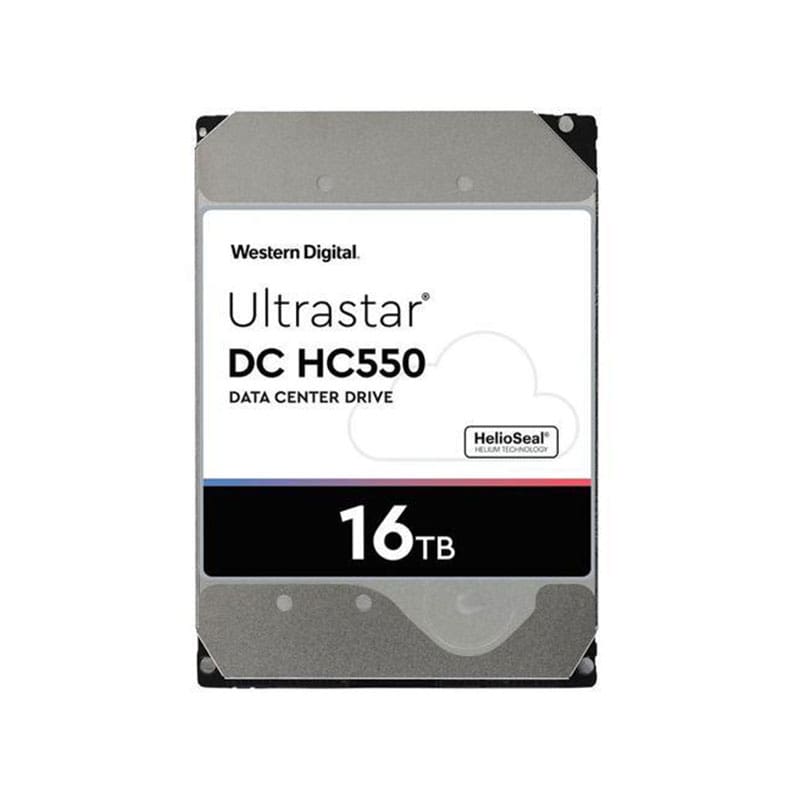

Western Digital Ultra Star DC HC550 16TB 7200RPM SAS 12Gbps HD
Brand WD
Product Line WD Ultra star DC HC550
Model WUH721816AL5205
Manufacturer Western Digital
Storage
Average Latency 4.16 millisecond
Buffer Size 512 megabyte
Data Transfer Rate (Hard Drive) 1.2 GBps
Form Factor (Short) 3.5″
Form Factor (Short) (metric) 8.9 cm
Hard Drive Capacity 16 TB
Hard Drive Features
Conventional magnetic recording (CMR), Energy-Assisted Magnetic Recording (EAMR), Helio Seal, Media Cache Plus, Rotational Vibration Safeguard (RVS), Sanitize Cryptographic Erase support, Sanitize Cryptographic Scramble support, Triple State Actuator (TSA), Two-Dimensional Magnetic Recording (TDMR)
Hard Drive Type
Internal hard drive
HD Interface Serial Attached SCSI 3
Load/Unload Cycles 600,000
Max Internal Data Transfer Rate 262 MBps
Non-Recoverable Errors 1 per 10^15
Spindle Speed (rpm)
7200 revolutions per minute
Storage Interface
Serial Attached SCSI 3
24×7 Operation Yes
Connectivity
Interface Provided
1 x SAS 12 Gb/s
Power
Power Consumption 5.8 Watt (idle), 8.8 Watt (typical)
Technical Information
Compatible Bay 3.5″
Hard Drive Form Factor 3.5″
Hard Drive Form Factor (metric) 8.9 cm
Encryption FIPS
Max Operating Temperature 140 degree Fahrenheit
Max Storage Temperature 158 degree Fahrenheit
Min Operating Temperature 41 degree Fahrenheit
Min Storage Temperature -40 degree Fahrenheit
MTBF 2,500,000 Hours
Shock Acceleration (Non-operating) 250 gram
Shock Acceleration (Operating) 50 gram
Shock Duration (Non-operating) 2 ms half-sine wave
Shock Duration (Operating) 2 ms half-sine wave
Vibration Acceleration (Non-operating) 1.04 gram
Vibration Acceleration (Operating) 0.67 gram
Vibration Frequency Range (Non-operating) 2-200 Hz
Vibration Frequency Range (Operating) 5-500 Hz
Product Information
Encryption Details
Self-Encrypting Drive (SED), TCG Enterprise
Hardware Encryption Yes
Packaged Quantity 1
Product Type Hard Drive
Dimensions & Weight
Height 1 inch
Weight 24.34 ounce
Width 4 inch
Depth 5.8 inch
