0TS1307 Technical Specifications

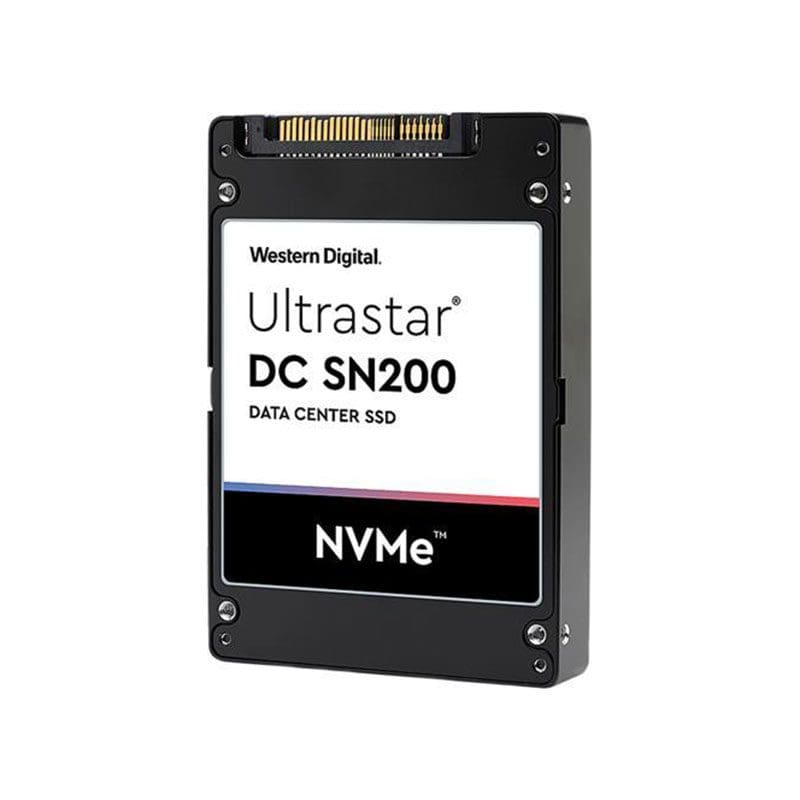

HGST Ultrastar SN200 1.6TB Pcie 3.0 X4 OR 2X2 Nvme 1.2 U.2 2.5Inch Solid State Drive
GENERAL INFORMATION :
Brand : Hgst
Part : 0ts1307
Product Line : Ultrastar Sn200
Product Type : Solid State Drive (SSD)
Product Name : Ultrastar Sn200 Solid State Drive
KEY FEATURES :
Storage Capacity : 1.6 Tb
Interface : Pcie 3.0 X4 Or 2×2 Nvme 1.2
Form Factor : U.2 2.5-Inch Drive
Mtbf : 2 Million Hours
PERFORMANCE :
Sequential Read (Max, 128k) : 3350 Mbps
Sequential Write (Max, 128k) : 2100 Mbps
Random Read Iops (Max, 4k) : 835,000 Iops
Random Write Iops (Max, 4k) : 200,000 | 75,000 Iops
Mixed Iops (70/30 R/W, Random 4k) : 550,000 | 240,000
PHYSICAL :
Z-Height : 15 Mm
Dimensions (W X D): 100.45 X 69.85 Mm
Weight, Without Bracket : 184 G
