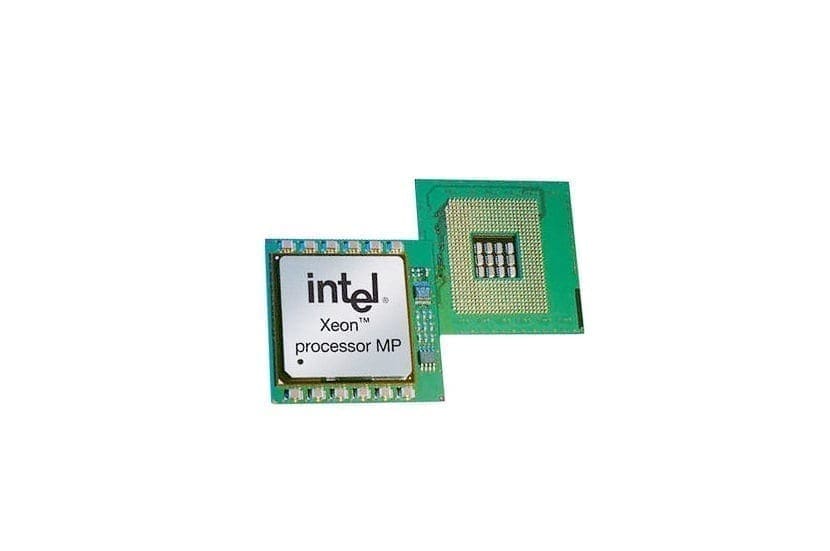

13N0654 IBM 3.00GHz 400MHz FSB 4MB Intel Xeon MP Processor
13N0654 Overview
13N0654 IBM 3.00GHz 400MHz FSB 4MB L3 Cache Intel Xeon MP Processor Upgrade
13N0654 Technical Specifications
IBM 3.00GHz 400MHz FSB 4MB L3 Cache Intel Xeon MP Processor Upgrade
Brand Intel
Part No. 13N0654
Processor Type Server
Series Xeon Processor
Processor Code Name Gallatin
Core Stepping C0
Manufacturing Technology 130 nm
CPU ID String 0F26h
# of Cores 1
# of Threads 1
Clock Speed 3.00 GHz
L3 Cache Size 4 MB
Front Side Bus / QuickPath Interconnect 400 MHz
Thermal Power 85 Watts
VID Voltage Range 1.5V
CPU Socket Type PGA604
