2290800-R Technical Specifications

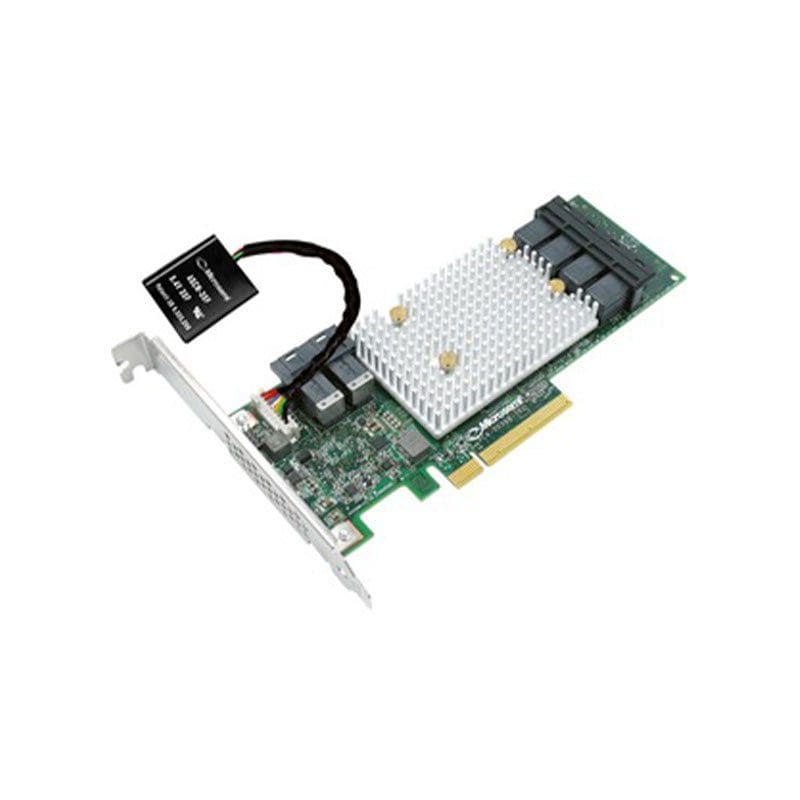

Microsemi Adaptec Controller SATA/SAS Smartraid 3154-8e 8port Ext 12
Manufacturer Part Number 2290800-R
Brand Name Microsemi
Product Type SAS Controller
Technical Information
Host Interface PCI Express 3.0 x8
Controller Type 12Gb/s SAS
RAID Supported Yes
RAID Levels 0
1
5
6
50
60
10 ADM
1 ADM
Data Backup Type Flash Backed Cache
Memory
Cache Memory 4 GB
Interfaces/Ports
Total Number of SAS Ports 8
Number of SAS Ports (Internal) 8
SAS Connector Details 2 SFF-8644
Physical Characteristics
Height 2.5″
Width 6.6″
Form Factor Plug-in Card
Miscellaneous
Platform Supported PC
Linux
Environmentally Friendly Yes
Environmental Certification RoHS
