580643-001 Technical Specifications

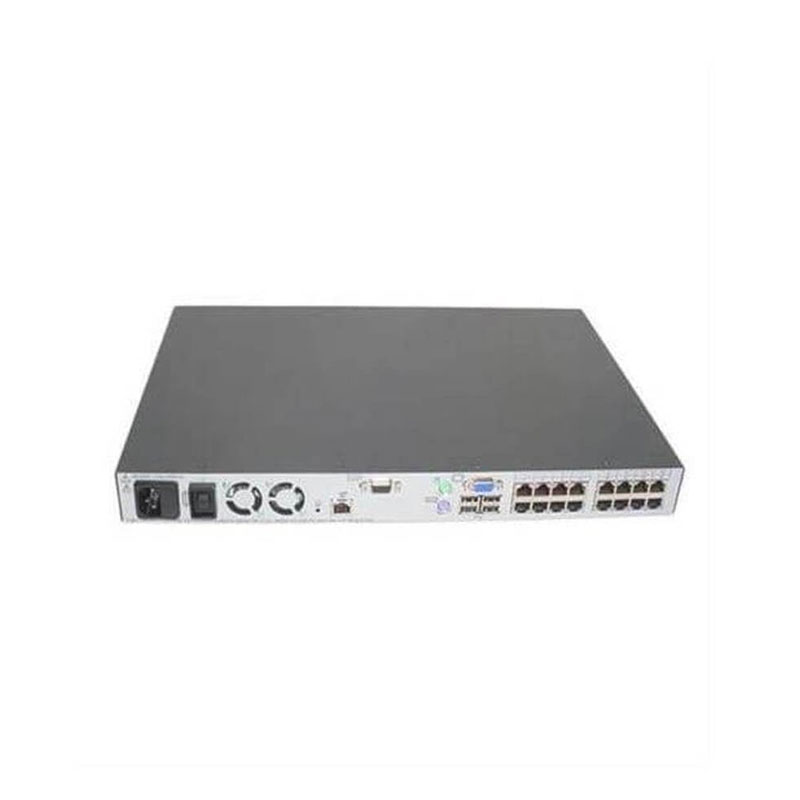

HP Server Console G2 Switch With Virtual Media And CAC 0x2x16 KVM Switch
Manufacturer: HP
Manufacturer Part Number:580643-001
Type: Server Console G2 KVM Switch with Virtual Media and CAC
Ports: 0 x local, 2 x user sessions, 16 x server ports
Connectivity: USB, PS/2, and network for remote management
Virtual Media: Supported for remote software installation and updates
Smart Card / CAC: Integrated support for Common Access Card authentication
Layer: KVM switching (out-of-band management)
Management: Web-based GUI, CLI, On-Screen Display (OSD)
Security: LDAP, RADIUS, smart card/CAC authentication
Cascading: Supports tiering to manage up to hundreds of servers
Switching Capacity: 2 simultaneous remote users + 1 local user
Resolution: Supports up to 1600×1200 video resolution
Form Factor: Rack-mountable, 1U appliance
LEDs: Port status, activity, power indicators
