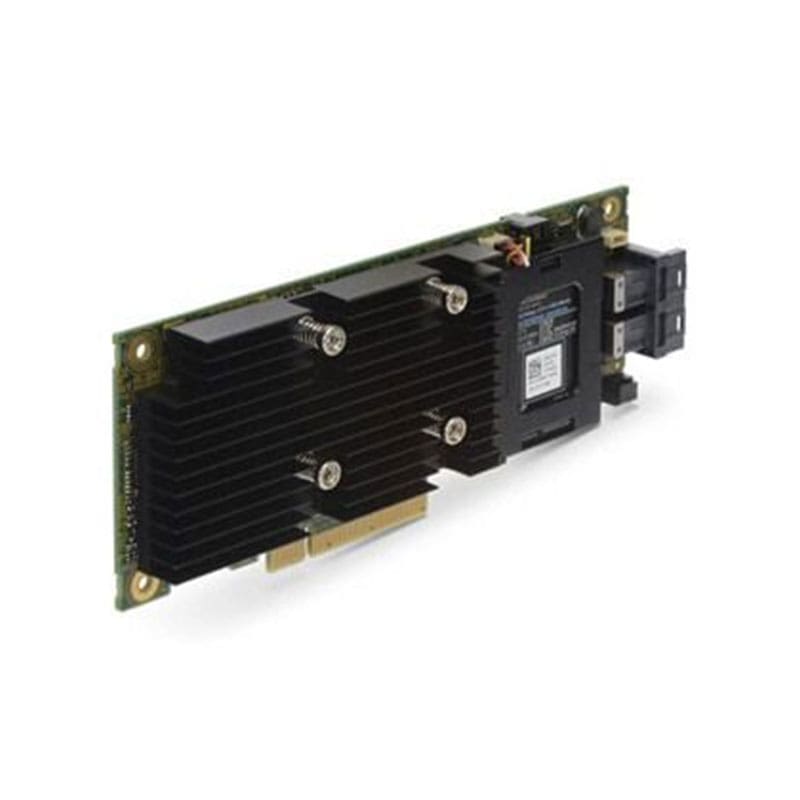

58HR3 Dell Perc H730P Slim Card PCI-E 3.0 Raid Controller
58HR3 Overview
The 58HR3 Dell Perc H730P Slim Card PCI-E 3.0 Raid Controller with 2GB NV Cache for Poweredge FC630 comes with advanced management and monitoring tools that can help simplify and streamline the administration of your server environment.
DELL OpenManage: This is a comprehensive management tool that provides real-time monitoring and management of your server hardware and software components. The tool allows you to perform basic administration tasks, such as firmware updates, hardware configuration, and monitoring of system events.
RAID Management: The controller supports advanced RAID management and provides options for creating, monitoring and managing multiple RAID arrays.
58HR3 Technical Specifications
Dell 58HR3 Perc H730P Slim Card Peripheral Component Interconnect Express (PCI-E) 3.0 Raid Controller with 2 Gigabyte(GB) Non Volatile (NV) Cache for Poweredge FC630
Brand: Dell
MPN : 58HR3
Type: Controller
Sub-Type: SAS-SATA
Technical Information
Interface Support : 12GB/S SAS, 6GB/S SATA
PCI Support : PCI-E 3.0
SAS Connections : 2×4 Internal
Cache Memory : 2GB NV
Raid Levels : 0,1,5,6,10,50,60
Max Drive Support : 32
Raid Support : Hardware
Microsoft Windows Server 2008 R2, 2012, 2012 R2 and 2016
VMware vSphere ESXi 5.5, 6.0, 6.5 and 6.7
Red Hat Enterprise Linux 6 and 7
SUSE Linux Enterprise Server 11 SP4 and 12 SP2
Oracle Linux 6 and 7
