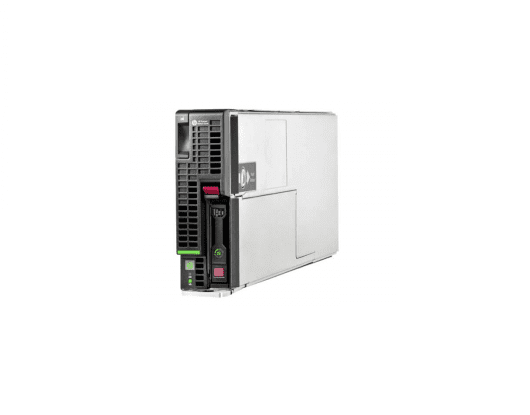

Refurbished 634969-B21 HP Proliant Bl465c G8 1x AMD Opteron

Refurbished 634969-B21 Technical Specifications

HP Proliant Bl465c G8 1x AMD Opteron 16-Core 6276/2.3GHz 16GB RAM Matrox G200 2×10 Gigabit Ethernet 2-Way Blade Server.

GENERAL INFORMATION :
Manufacturer : Hewlett Packard
Manufacturer Part Number : 634969-B21
Product Name : Proliant Bl465c G8 Blade Server
PROCESSOR & CHIPSET :
Processor Type : Amd Second-Generation Opteron 6276 / 2.3GHz
Multi-Core Technology : 16 Core
64-Bit Computing : Yes
Installed Qty : 1
Max Supported Qty : 2
Upgradability : Upgradable
Chipset Type : Amd Sr5690/Sp5100
CACHE MEMORY :
Cache Memory Type : L3 Cache
Installed Size : 16 Mb
Cache Per Processor : 16 Mb
MEMORY :
Installed Size : 16 Gb
Maximum Size : 512 Gb
Technology : Ddr3 Sdram
Memory Speed : 1333 Mhz
Memory Specification Compliance : Pc3-10600
Form Factor : Dimm 240-Pin
Features : Registered
Configuration Features : 2 X 8 Gb
Ram Supported : Pc3-10600 – 512gb Load-Reduced Pc3-12800 – 256gb Registered
STORAGE & STORAGE CONTROLLER :
Hard Drive : One Ship Standard
Supports : Up To Two Hp Sff Hot-Plug Sas/Sata/Sdd Drives
Internal Storage : Sas: 2.4tb, Sata: 2.0tb, Sas Ssd: 1.6tb, Sata Ssd: 1.6tb,
Optical Drive Bay : None
Storage Controller Name : Smart Array P220i With 512mb Fbwc
Raid Level : Raid 0, Raid 1
Buffer Size : 512 Gb
DISPLAY & GRAPHICS CONTROLLERS :
Integrated Matrox G200 Video Standard
1280 X 1024 (32 Bpp)
1920 X 1200 (16 Bpp)
Hp Ilo 4 On System Management Memory
16 Mb Flash
256 Mb Ddr 3 With Ecc (112 Mb After Ecc And Video)
NETWORK & COMMUNICATION :
Network Controller : One Hp Flexfabric 10gb 2-Port 554flb Flexiblelom
Remote Management Controller : Integrated Lights-Out 4
Remote Management Protocol : Snmp, Ipmi 2.0
Compliant Standards : Ieee 802.1q, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (Lacp), Ieee 802.3ae, Ieee 802.3ap
EXPANSIONS & CONNECTIVITY :
Expansion Bays Total (Free) :
2 (Total) / 2 (Free) X Hot-Swap – 2.5in Sff
Expansion Slots Total (Free) :
16 (Total) / 14 (Free) X Memory – Dimm 240-Pin
2 (Total) / 1 (Free) X Processor
1 (Total) / 1 (Free) X Expansion Slot ( X8 Mode )
1 (Total) / 1 (Free) X Expansion Slot ( X16 Mode )
1 (Total) / 0 (Free) X Flexiblelom
1 (Total) / 1 (Free) X Microsdhc
Interfaces & Ports :
2 X Network – Ethernet 10gbase-Kr – Rj-45
1 X Management – Hp Ilo – Rj-45
DIMENSIONS & WEIGHT :
Width : 2.2 In
Depth : 20.4 In
Height : 7.1 In
Weight : 10 Lbs
