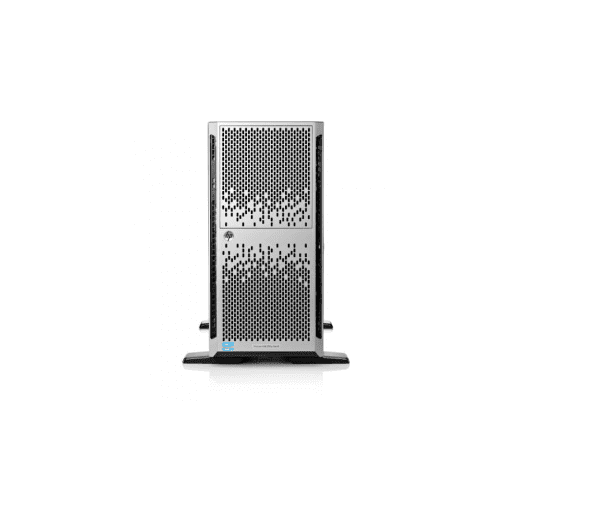

652066-B21 Technical Specifications
HP ML350P G8 CTO Tower Chassis LFF.
GENERAL INFORMATION :
Manufacturer : Hewlett Packard
Manufacturer Part Number : 652066-B21
Product Name : Proliant Ml350p G8 5U Tower Server CTO
PROCESSOR & CHIPSET :
Processor Type : Intel E5-2600 Processor Family
Installed Qty : No CPU
Max Supported Qty : 2
Upgradability : Upgradable
Chipset Type : Intel C600
MEMORY :
Installed Size : None
Maximum Size : 768 GB (24 X 32GB LRDIMM @1066MHz)
Technology : DDR3 SDRAM
Form Factor : DIMM 240-Pin
Memory Slots : 24 DDR3 Slots
Features : Quad Channel Memory Architecture, HP Smartmemory
STORAGE & STORAGE CONTROLLER :
Hard Drive : None, Six Hot-Plug (LFF) Sas/Sata Drive Bays
Storage Controller Type : 1 X Raid – Plug-In Card – PCI Express 3.0 X8
Controller Interface Type : Serial ATA-300 / SAS 2.0
Storage Controller Name : Smart Array P420i
Raid Level : Raid 0, Raid 1, Raid 1
CARD READER :
Card Reader Type : Card Reader
Supported Flash Memory Cards : SD Memory Card
DISPLAY & GRAPHICS CONTROLLERS :
Graphics Controller Type : Integrated
Graphics Processor : Matrox G200
NETWORK & COMMUNICATION :
Networking : Network Adapter – Integrated
Ethernet Ports : 4 X Gigabit Ethernet
Ethernet Controller(S) : 1GB Ethernet 4-Port 331i Adapter
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol : Ipmi 2.0, Smash CLP
Remote Management Controller : Integrated Lights-Out 4
Features : Wake On Lan (Wol), Pxe Support
Compliant Standards : IEEE 802.3, Ieee 802.3U, Ieee 802.3AB
EXPANSIONS & CONNECTIVITY :
Expansion Bays Total (Free) :
3 (Total) / 3 (Free) X Front Accessible – 5.25in Slim Line
6 (Total) / 6 (Free) X Hot-SWAP – 3.5in LFF
EXPANSION SLOTS TOTAL (FREE) :
2 (Total) / 2 (Free) X Processor
24 (Total) / 24 (Free) X Memory – Dimm 240-Pin
1 (Total) / 1 (Free) X Pci Express 3.0 X16 – Full-Length, Full-Height
4 (Total) / 4 (Free) X Pci Express 3.0 X8 – Half-Length, Full-Height
1 (Total) / 1 (Free) X Pci Express 2.0 X8 – Half-Length, Full-Height(X4 Mode)
3 (Total) / 3 (Free) X Pci Express 3.0 X16 – Full-Length, Full-Height
INTERFACES & PORTS :
1 X Serial – RS-232 – 9 Pin D-Sub (DB-9)
1 X Display / Video – VGA – 15 Pin HD D-Sub (HD-15) ( 1 Front, 1 Rear )
1 X Management – HP ILO – RJ-45
10 X Hi-Speed Usb – 4 Pin USB Type A
4 X Network – Ethernet 10Base-T/100base-TX/1000base-TX – RJ-45
POWER DEVICE :
Device Type : Power Supply – Hot Plug
Power Redundancy : Optional
Power Redundancy Scheme : 1+1 (With Optional Power Supply)
Installed Qty : 0
Max Supported Qty : 2
Voltage Required : AC 120/230 V ( 50/60 Hz )
