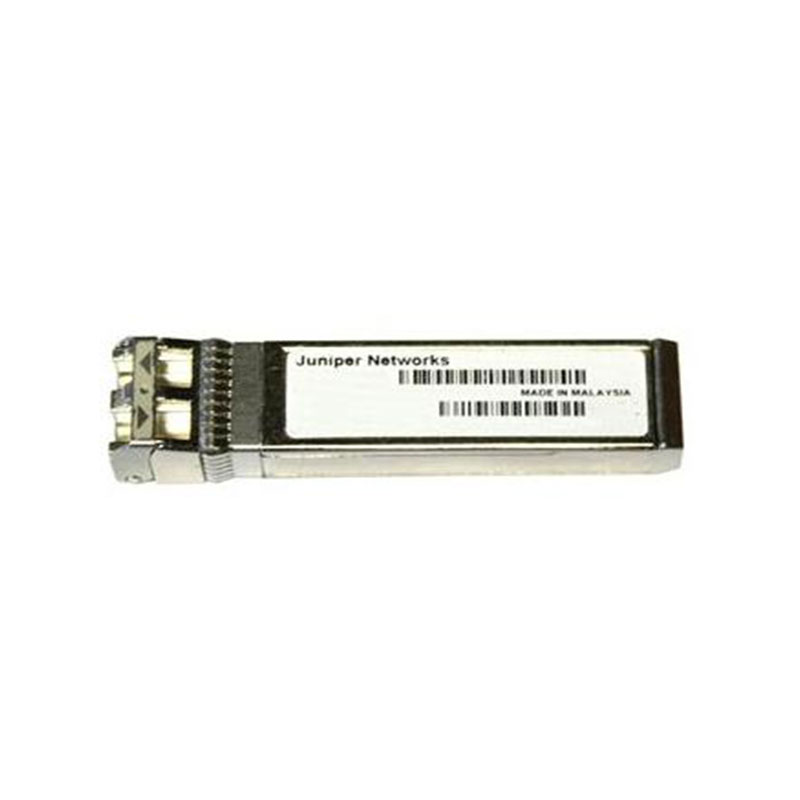

740-065054 Juniper 100Gbase-SR10 MMF MPO-24 Connector Transceiver

740-065054 Overview

The Juniper 740-065054 is a high-performance optical transceiver designed for 100 Gigabit Ethernet short-reach applications. Supporting the 100GBASE-SR10 IEEE 802.3ba standard, it operates over multi-mode fiber (MMF) using an 850nm VCSEL laser array. The module transmits and receives data across 10 parallel lanes at 10.3125Gbps per lane, achieving a total aggregate bandwidth of 100Gbps.Equipped with an MPO-24 connector, this transceiver supports distances of up to 100 meters on OM3 fiber and up to 150 meters on OM4 fiber, making it ideal for data centers, enterprise backbones, and high-performance computing networks that require ultra-fast, short-reach connections.The 740-065054 is built for reliability, low latency, and high throughput, and is fully hot-swappable, enabling seamless upgrades or replacements without disrupting network operations.

Availability: In Stock
SKU:740-065054
Brand:

740-065054 Technical Specifications

Juniper 100Gbase-SR10 MMF MPO-24 Connector Transceiver

Manufacturer Part Number: 740-065054
Brand Name: Juniper
Product Type: QSFP28 Transceiver Module
Data Rate: 100Gbps
Transceiver Type: 100GBase-SR10 (Short Range)
Media Type Supported: Multi-Mode Fiber (MMF)
Wavelength: 850nm
Connector Type: MPO-24
Maximum Reach: Up to 100m (OM3) / 150m (OM4)
Form Factor: QSFP28
Hot Swappable: Yes
Digital Diagnostics Monitoring (DOM): Supported
Fiber Strand Count: 20 (10 Tx / 10 Rx)
Compatibility: Juniper switches and routers with QSFP28 ports
Application: High-speed data center and enterprise backbone connectivity
Standards Compliance: IEEE 802.3ba 100GBase-SR10, QSFP28 MSA
Backward Compatibility: Supports breakout to multiple 10GbE lanes with proper cabling
Power Consumption: Low power design for energy efficiency
Operating Temperature: 0°C to 70°C
Storage Temperature: -40°C to 85°C
