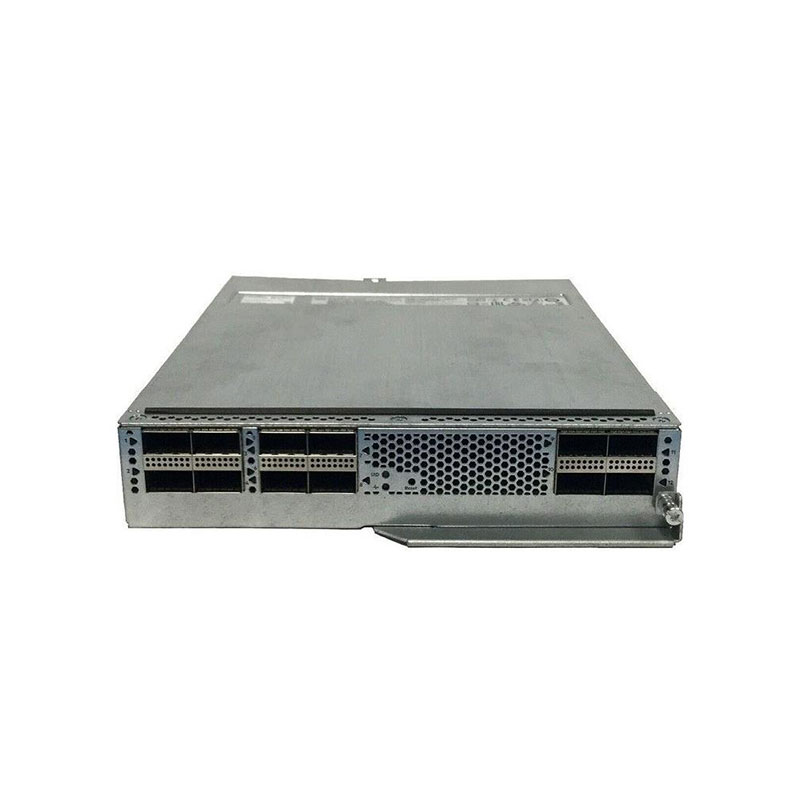

851324-001 HP Edr 100 Gb 36-Port Unmanaged Switch

851324-001 Overview

The HP 851324-001 EDR 100Gb 36-Port Unmanaged Switch is a high-performance InfiniBand switch designed for high-performance computing (HPC) clusters, storage fabrics, and data centers requiring ultra-low latency and massive bandwidth. It provides 36 ports, each capable of 100Gbps EDR (Enhanced Data Rate) connectivity, delivering extremely high throughput and low-latency interconnects between compute nodes and storage systems.As an unmanaged switch, it offers plug-and-play functionality, making deployment straightforward without complex configuration, while still maintaining non-blocking, lossless performance essential for HPC workloads and latency-sensitive applications. The EDR technology ensures enhanced signaling and bandwidth efficiency compared to previous generation InfiniBand switches, making it ideal for large-scale computing clusters and data-intensive workloads.

Availability: In Stock
SKU:851324-001
Brand:

851324-001 Technical Specifications

HP Edr 100 Gb 36-Port Unmanaged Switch

Manufacturer Part Number: 851324-001
Brand Name: HP
Product Type: EDR InfiniBand Unmanaged Switch
Form Factor: 1U Rack-mountable
Number of Ports: 36 Active
Port Type: QSFP28
Port Speed: 100Gbps per port
Expansion Slots: 36 x QSFP28
Aggregate Bandwidth: 3.6Tbps full duplex
Management: Unmanaged (Plug-and-Play)
Advanced Features: Auto-Negotiation, Flow Control
Security: Basic Port Security
Scalability: Stackable via QSFP uplinks
Hot-Swappable Components: Yes
Redundant Power Supplies: Not Supported
Cooling: Integrated Fans
Power Consumption: Energy Efficient
Environmentally Friendly: Yes
Environmental Certification: RoHS Compliant
Operating Temperature: 0°C to 45°C
Operating Humidity: 10% to 90% Non-Condensing
Weight: Approx 22 lbs (10 kg)
Dimensions: 1.7 x 17.3 x 20 in (H x W x D)
