Refurbished AIR-CT3504-K9 Technical Specification

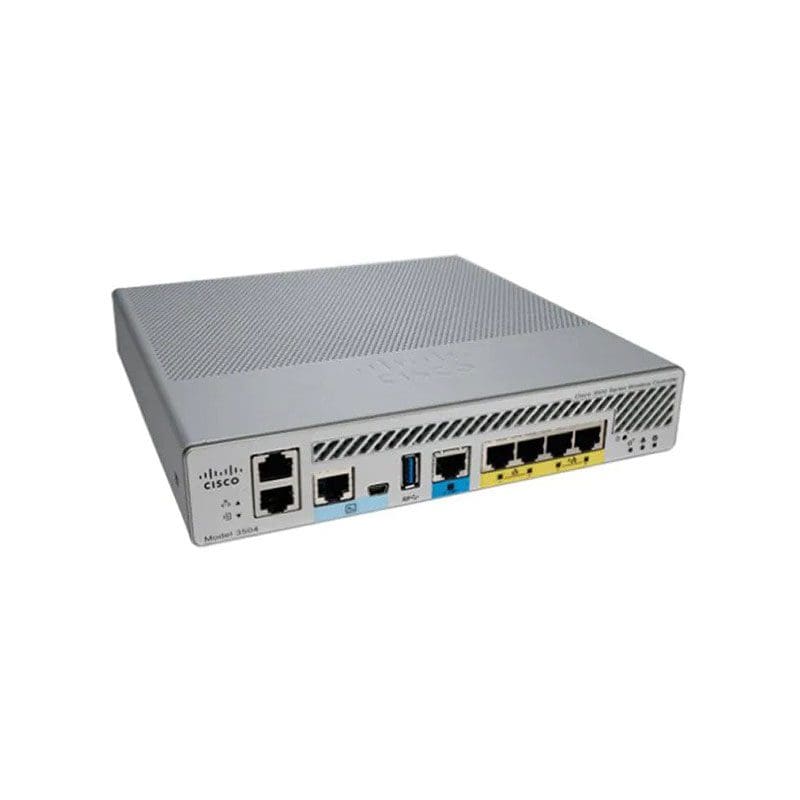

Cisco Wireless Controller 3504
Manufacturer :CISCO DS HARDWARE DIRECT
Brand :Cisco
Product Line :Cisco Wireless Controller
Model :3504
Packaged Quantity :1
Performance
Performance :Throughput: 4 Gbps
Capacity
Capacity :Maximum number of access points: 150, Maximum number of clients: 3000, VLANs supported: 4096
Networking
Type :Network management device
Form Factor :Desktop
Ports Qty :4
Data Link Protocol :5 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac Wave 1, IEEE 802.11ac Wave 2, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wireless Protocol :802.11a/b/g/n/ac Wave 2
Routing Protocol :CIDR
Network / Transport Protocol :ARP, Bonjour, BOOTP, DHCP, TCP/IP
Remote Management Protocol :HTTP, HTTPS, RMON, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet, TFTP
Status Indicators :Diagnostic, Link OK
Features :Access Control List (ACL) support, Application Visibility and Control (AVC), CAPWAP support, Chromecast support, CleanAir technology, Deep Packet Inspection (DPI), Internet Control Message Protocol (ICMP), Link Aggregation, Management Information Base (MIB), Network-Based Application Recognition (NBAR) 2, SNTP support, Syslog support, TrustSec support, Wi-Fi Multimedia (WMM) support
Compliant Standards :IEEE 802.11a, IEEE 802.11ac Wave 1, IEEE 802.11ac Wave 2, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11u, IEEE 802.11w, IEEE 802.1ae, IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3u, X.509
Interface Provided
Interfaces :1 x 5GBase-T – RJ-45, 1 x console – mini-USB, 1 x console – RJ-45, 1 x redundancy – RJ-45, 1 x serial – RJ-45, 1 x USB 3.0, 4 x 1000Base-T – RJ-45
Power Device
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
Miscellaneous
Color Category :Gray
TAA Compliant :Yes
Encryption Algorithm :AES, AES-CBC, CCM, CCMP, CRL, DES, DTLS, ESP, IKE, ISAKMP, MD5, PKI, RC4, SHA-1, SSL, TKIP, TLS 1.0, TLS 1.2, Triple DES, WEP, WPA, WPA2
Authentication Method :Extensible Authentication Protocol (EAP), RADIUS, TACACS
Compliant Standards :AS/NZS 60950-1, AS/NZS CISPR 22 Class B, CAN/CSA C22.2 No. 60950-1 Second Edition, CISPR 24, CNS 13438 Class B, EN 300386, EN 55032 Class B, EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3, EN55024, FCC CFR47 Part 15 B, GB 4943-2011, ICES-003 Class A, IEC 60950-1 Second Edition, KN22 Class B, KN24, UL 60950-1 Second Edition, VCCI Class B
Dimensions & Weight
Width :8.4 inch
Depth :8.5 inch
Height :1.7 inch
Weight :4.41 lbs
