Home›Transceivers›HP Transceiver›AL563A HP 10Gbps Short Wave Fibre Channel Xenpak Transceiver Module
HP-AL563A

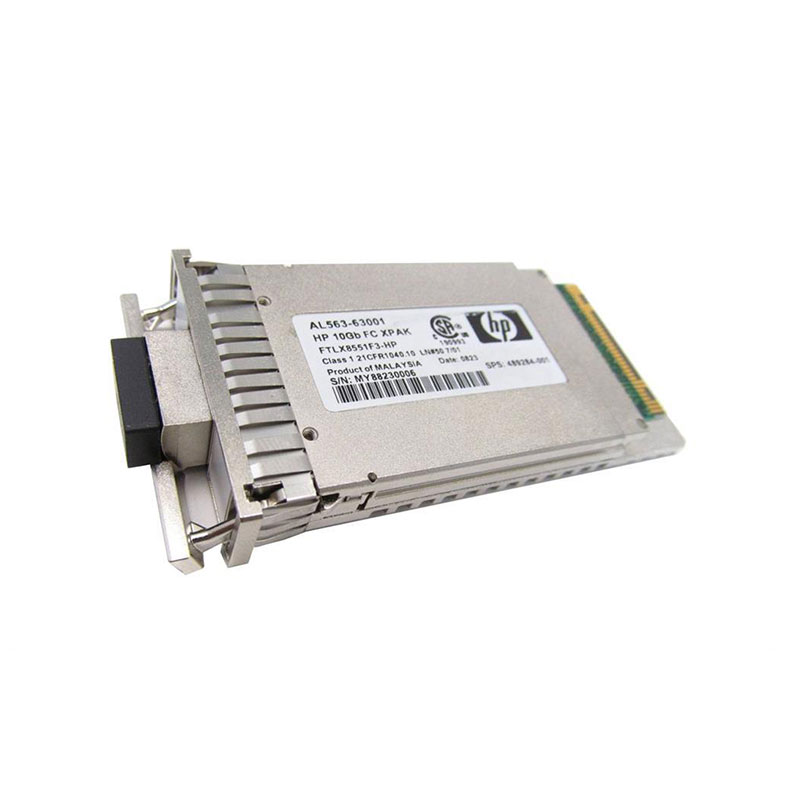

AL563A HP 10Gbps Short Wave Fibre Channel Xenpak Transceiver Module

AL563A Overview

The HP AL563A is a high-speed 10Gbps shortwave Fibre Channel transceiver module designed for use in enterprise storage networks and high-performance data center environments. Built in the Xenpak form factor, it supports 10GBase-SR and 10Gb Fibre Channel applications over multi-mode fiber (MMF). Operating at an 850nm wavelength, it provides reliable short-reach connectivity of up to 300 meters on OM3 fiber and up to 400 meters on OM4 fiber, making it suitable for inter-switch links, storage arrays, and server connections within the same facility.

Availability: In Stock
SKU:AL563A
Brand:

AL563A Technical Specifications

HP 10Gbps Short Wave Fibre Channel Xenpak Transceiver Module

Manufacturer Part Number: AL563A
Brand Name: HP
Product Type: Xenpak Transceiver
Data Rate: 10Gbps
Transceiver Type: Short Wavelength Fibre Channel
Media Type Supported: Multi-Mode Fiber (MMF)
Wavelength: 850nm
Connector Type: SC Duplex
Maximum Reach: Up to 300m over OM3 fiber
Form Factor: Xenpak
Hot Swappable: Yes
Digital Diagnostics Monitoring (DOM): Supported
Fiber Strand Count: 2 (duplex)
Compatibility: HP networking and storage devices supporting Xenpak modules
Application: High-speed Fibre Channel and Ethernet connectivity
Standards Compliance: IEEE 802.3ae 10GBase-SR, Xenpak MSA
Backward Compatibility: Not applicable
Operating Temperature: 0°C to 70°C
