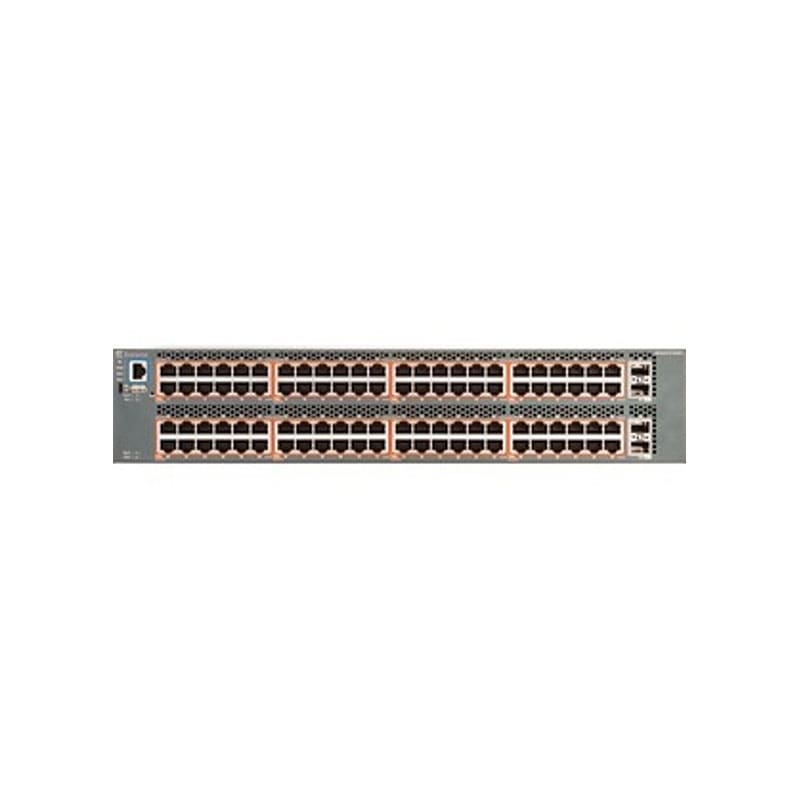

AL5900A6F-E6 Technical Specifications
Extreme Networks ExtremeSwitching Ethernet Routing Switch 5900 59100GTS-PWR
Manufacturer: EXTREME NETWORKS
Manufacture Part Number: AL5900A6F-E6
Brand: Extreme Networks
Product Line: Extreme Networks ExtremeSwitching Ethernet Routing Switch 5900
Model: 59100GTS-PWR+
Packaged Quantity: 1
Chassis
Airflow Direction: Front to back airflow
Networking
Type: Switch
Subcategory: Network hubs and switches
Subtype: Gigabit Ethernet
Form Factor: Rack-mountable
Max Units In A Stack: 8
Ports Qty: 100
Advanced Switching: Layer 3
MAC Address Table Size: 32000 entries
Jumbo Frame Support: 9216 bytes
Manageable: Yes
Compliant Standards: IEEE 802.1aq, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Ports
Qty: 96
Type: 10/100/1000 (PoE+)
Ports (2nd)
Qty: 4
Type: 10 Gigabit SFP+
Interface Provided
Interfaces: 1 x console RJ-45 management, 4 x 10Gbit LAN SFP+, 96 x 1000Base-T RJ-45 PoE+ – 30 W
