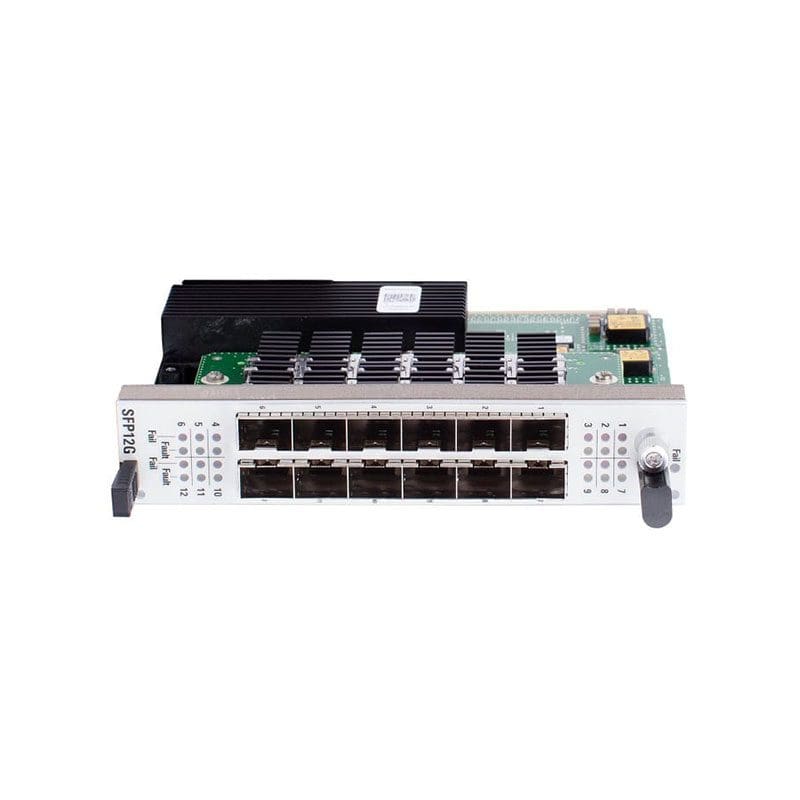

BT8A78SFP12G Juniper Networks BTI Interface Card expansion module
BT8A78SFP12G Overview
BTI Interface Cards (BICs) are modules that hold pluggable transceivers. The transceivers are plugged into the BICs, which in turn are inserted into the UFMs. A BIC can be installed into a UFM3 or a UFM4.
$9,835
Buy Now
BT8A78SFP12G Technical Specifications
Juniper Networks BTI Interface Card expansion module 10 Gigabit SFP+
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks
Model :BTI Interface Card
Packaged Quantity :1
Networking
Type :Expansion module
Form Factor :Plug-in module
Connectivity Technology :Wired
Data Link Protocol :SONET/SDH, OTU2, 10 Gigabit Ethernet
Data Transfer Rate :10.709 GBps
Status Indicators :Fail, H/S(hot swap), Active
Features :Super Forward Error Correction (FEC)
Ports
Qty :12
Type :10 Gigabit SFP+
Interface Provided
Interfaces :12 x 10Gb Ethernet – SFP+
Power Device
Power Consumption Operational :43 watt
Miscellaneous
Color Category :Gray
MTBF :1,398,993 Hours
Compliant Standards :G.975
Dimensions & Weight
Width :1.1 inch
Depth :6.4 inch
Height :5.9 inch
Weight :15.87 ounce
