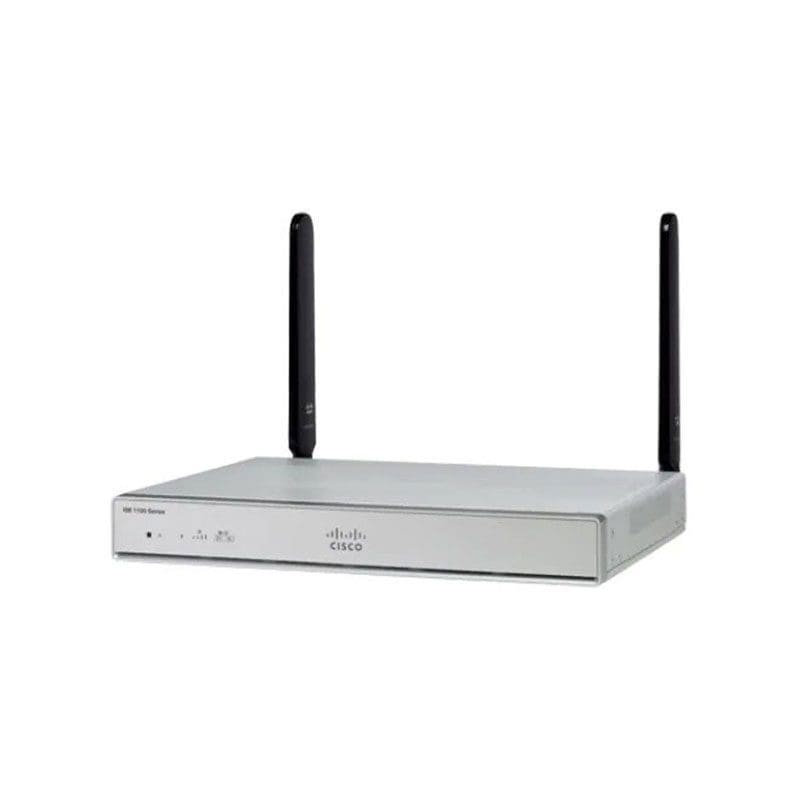

Refurbished C1116-4PLTEEAWE Technical Specifications
Cisco Integrated Services Router 1116 router DSL/WWAN 802.11a/b/g/n/ac Wave 2 desktop
Device Type Router – 4-port switch (integrated)
Enclosure Type Desktop
Connectivity Technology Wireless, wired
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2
Frequency Band 2.4 GHz / 5 GHz
Performance Encryption throughput: 250 Mbps
Network / Transport Protocol IPSec, PPPoE, DHCP, DNS, L2TPv3
Routing Protocol OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, DVMRP, VRRP, PIM-SM, static IP routing, IGMPv3, GRE, PIM-SSM, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD), RSVP
Remote Management Protocol SNMP, RMON, CLI, TR-069
Encryption Algorithm DES, Triple DES, SHA, MD5, IKE, ECDSA, 128-bit AES, 256-bit AES, 1024-bit RSA, 2048-bit RSA, 256-bit SHA, 512-bit SHA, 748-bit RSA, 384-bit SHA
Authentication Method RADIUS
Features Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Access Control List (ACL) support, Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN), 2T2R MIMO technology, NetFlow, Maximum Ratio Combining (MRC), IPFIX, cyclic shift diversity (CSD), Location ID Separation Protocol (LISP), packet aggregation A-MPDU, packet aggregation A-MSDU, Management Information Base (MIB) II, Application Visibility and Control (AVC), Authentication, Authorization and Accounting (AAA), Dynamic Frequency Selection (DFS), Encapsulated Remote SPAN (ERSPAN), Embedded Event Manager (EEM)
Compliant Standards IEEE 802.3af, IEEE 802.11i, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3at, IEEE 802.11r, IEEE 802.11ac Wave 2, CISPR 24, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, CB, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, FCC CFR47 Part 15, UL 60950-1 Second Edition, VCCI V-3, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS CISPR 22, CNS 13438, EN 301 489-7, EN 301 489-1, FCC CFR47 Part 22, FCC CFR47 Part 24, CAN/CSA C22.2 No. 60950-1 Second Edition, EN 300 386, EN 301 489-24, EN 301 908-1, EN 301 908-2, EN 301 511, EN 301 908-13
RAM 4 GB
Flash Memory 4 GB
Status Indicators Status
Communications
Type DSL modem / wireless cellular modem
Digital Signaling Protocol ADSL2, VDSL2+
Cellular Protocol UMTS, TD-SCDMA, HSPA+, DC-HSPA+, LTE Advanced, FDD LTE, TDD LTE
Internet of Things (IoT)
Communications Technology LTE Cat 6
Expansion / Connectivity
Interfaces WAN: 1 x 1000Base-T/1000Base-X – RJ-45/SFP | LAN: 2 x 1000Base-T – RJ-45 | LAN: 1 x 1000Base-T (PoE+) – RJ-45 | LAN: 1 x 1000Base-T (PoE) – RJ-45 | USB 3.0: 1 x console | Antenna: 1 x GPS connector | WAN: 1 x VDSL2+ / ADSL2 over ISDN
Expansion Slots 1 (total) / 1 (free) x SIM
Power
Voltage Required AC 120/230 V (50/60 Hz)
Miscellaneous
Pricing Type Refurbished
Localization Middle East, Africa, North America, Russia, Europe
Dimensions & Weight
Width 12.7 in
Depth 9.6 in
Height 1.7 in
Weight 5.71 lbs
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 149 °F
Humidity Range Operating 5 – 95% (non-condensing)
