C1200-24FP-4G Technical Specifications

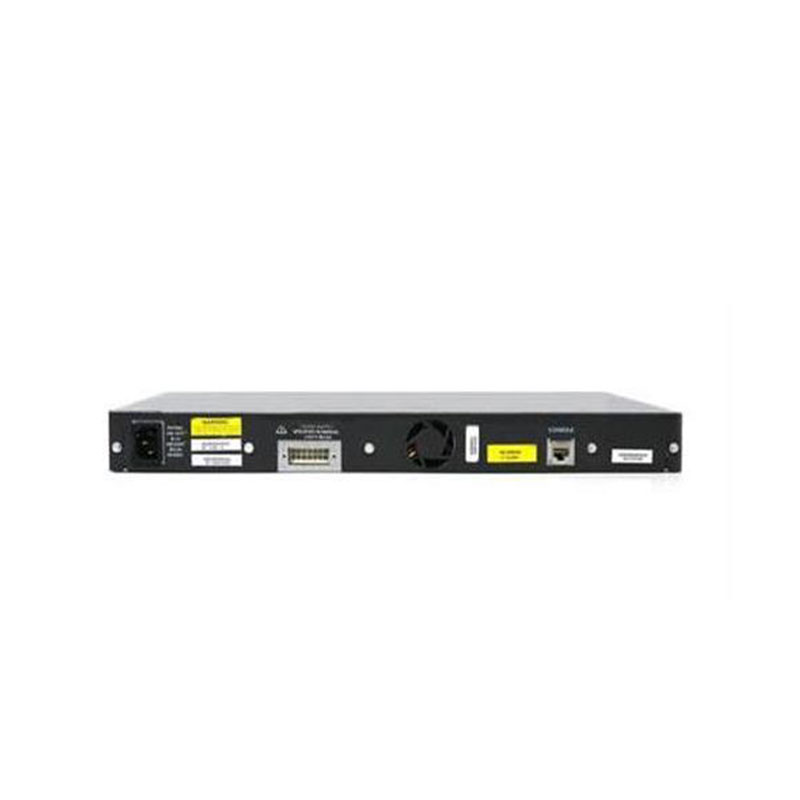

Cisco 24x RJ45 PoE+?4x SFP L3 GbE Smart Switch
Manufacturer Part Number: C1200-24FP-4G
Brand Name: Cisco
Product Line: Catalyst 1200 Series
Product Type: Layer 3 Smart Managed Gigabit Ethernet Switch
Total Ports: 24
Port Type: 24 x 10/100/1000Base-T RJ-45 PoE+
Uplink Ports: 4 x 1G SFP
Switching Capacity: 56 Gbps
Forwarding Rate: 41.6 Mpps
Layer Support: Layer 2 / Layer 3 Lite
PoE Budget: Up to 370W
VLAN Support: Up to 4094 VLANs
Spanning Tree Protocols: STP, RSTP, MSTP
Link Aggregation: IEEE 802.3ad LACP
Static Routing: Supported
Multicast Support: IGMP Snooping
Quality of Service: 802.1p, DSCP, Traffic Prioritization
Security: 802.1X, DHCP Snooping, ACLs, Port Security
Management: Web UI, CLI, SNMP, Cisco Business Dashboard
Stacking: Not supported
Port Mirroring: Supported
LED Indicators: Power, Status, Link/Activity, PoE
