C1300-24T-4G Technical Specifications

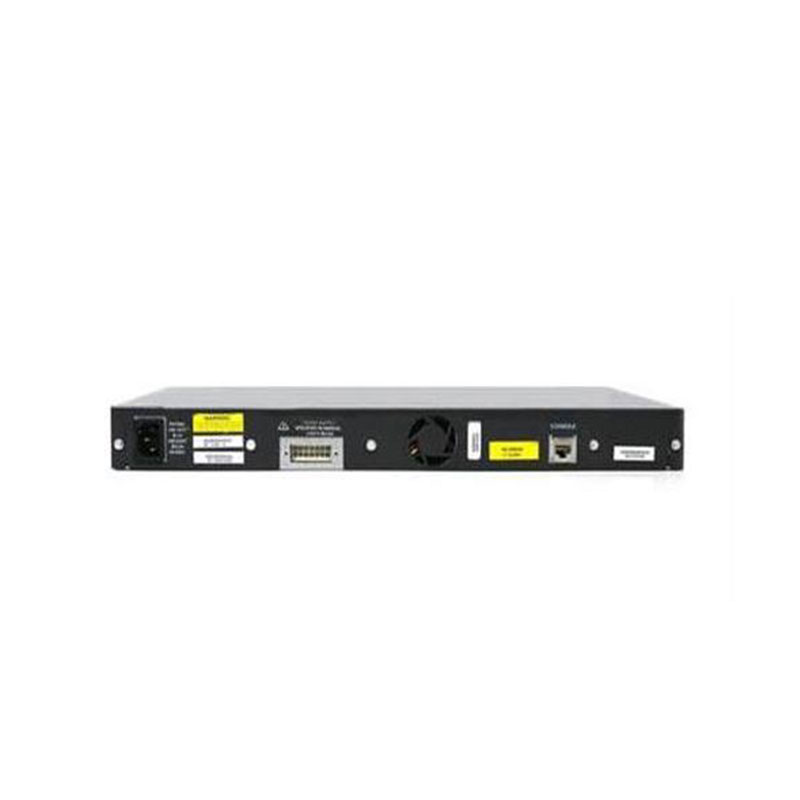

Cisco Catalyst 1300 24x RJ45 PoE+ 4x SFP GbE Switch
Manufacturer Part Number: C1300-24T-4G
Brand Name: Cisco
Product Line: Catalyst 1300 Series
Product Type: Managed Layer 3 Switch
Total Ports: 28
Port Type: 24 x 10/100/1000Base-T RJ-45 + 4 x Gigabit SFP
PoE Support: No (T model is non-PoE, PoE available in P models)
Switching Capacity: 56 Gbps
Forwarding Rate: 41.66 Mpps
Layer Support: Layer 2 / Layer 3 Lite
VLAN Support: Up to 4,094 VLANs (802.1Q)
Spanning Tree Protocols: STP, RSTP, MSTP
Link Aggregation: IEEE 802.3ad LACP
Static Routing: IPv4 / IPv6 supported
Multicast Support: IGMP Snooping, MLD Snooping
Stacking: Not supported
Security: 802.1X, ACLs, DHCP snooping, Port Security
QoS: Traffic prioritization, rate limiting, DSCP
Management: Web GUI, CLI, SNMP, RMON
LED Indicators: Power, System, Link/Activity
