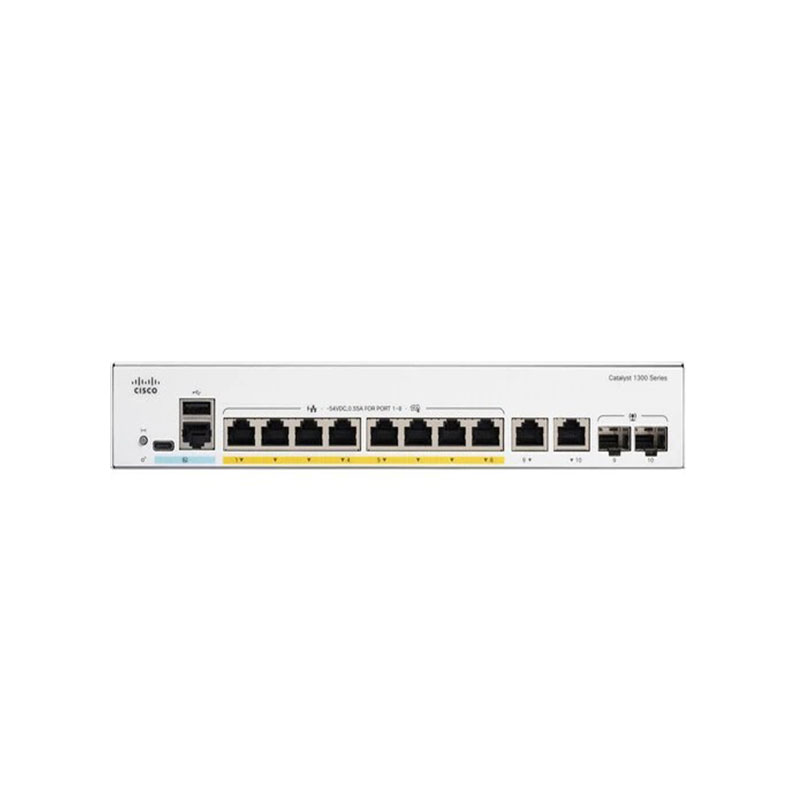

C1300-8P-E-2G Technical Specifications
Cisco Catalyst 8-Port Gigabit PoE+ Switch
Part Number: C1300-8P-E-2G
Series: Cisco Catalyst 1300 Series
Type: Layer 3 Managed Gigabit PoE+ Switch
Total Ports: 10
Gigabit Ethernet Ports: 8 x 10/100/1000 RJ-45 PoE+
Uplink Ports: 2 x 1G SFP
Switching Capacity: 20 Gbps
Forwarding Rate: 14.8 Mpps
MAC Address Table: 16,000 entries
VLAN Support: Up to 4,094 VLANs (IEEE 802.1Q)
Spanning Tree Protocols: STP, RSTP, MSTP
Routing Protocols: IPv4/IPv6 Static Routing
Link Aggregation: IEEE 802.3ad LACP
Flow Control: IEEE 802.3x
Quality of Service: 8 Queues, IEEE 802.1p, DSCP
Security: 802.1X, ACLs, Port Security, DHCP Snooping
Management: Web GUI, CLI, SNMP v1/v2c/v3, RMON, Syslog
Stacking Capability: Not supported
PoE Standard: IEEE 802.3af/at (PoE+)
PoE Budget: 120W max
