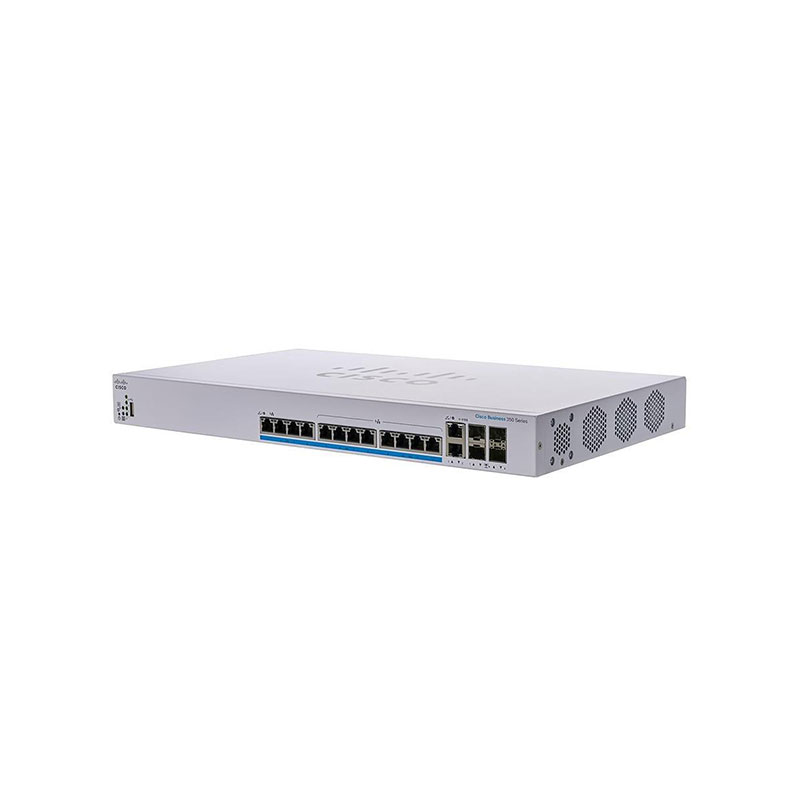

CBS350-12NP-4X Cisco Business 350 Series 12x Ports Network Switch

CBS350-12NP-4X Overview

The Cisco CBS350-12NP-4X is a 12-port Gigabit Ethernet managed switch from the Cisco Business 350 Series, designed for small and medium-sized businesses that require reliable, secure, and high-performance network connectivity. It includes 12x 10/100/1000Base-T RJ-45 ports for connecting end devices, along with 4x 10 Gigabit SFP+ uplink ports for high-speed connections to servers, aggregation switches, or core network devices.As a Layer 3 capable switch, the CBS350-12NP-4X supports static routing, VLAN segmentation, ACLs, QoS, and enhanced security features, ensuring efficient traffic management and network protection. It offers flexible management via web-based GUI, CLI, SNMP, or Cisco Business Dashboard, allowing easy deployment and monitoring even for networks with limited IT staff.

Availability: In Stock
SKU:CBS350-12NP-4X
Brand:

CBS350-12NP-4X Technical Specifications

Cisco Business 350 Series 12x Ports Network Switch

Part Number: CBS350-12NP-4X
Series: Cisco Business 350 Series
Type: Layer 3 Managed Gigabit Ethernet Switch
Total Ports: 16
Gigabit Ethernet Ports: 12 x 10/100/1000 RJ-45
Uplink Ports: 4 x 10G SFP+
Switching Capacity: 128 Gbps
Forwarding Rate: 95.2 Mpps
MAC Address Table: 16,000 entries
VLAN Support: Up to 4,094 VLANs (IEEE 802.1Q)
Spanning Tree Protocols: STP, RSTP, MSTP
Routing Protocols: IPv4/IPv6 Static Routing, RIP
Link Aggregation: IEEE 802.3ad LACP
Flow Control: IEEE 802.3x
Quality of Service: 8 Queues, IEEE 802.1p, DSCP, CoS
Security: 802.1X, ACLs, Port Security, DHCP Snooping
Management: Web GUI, CLI, SNMP v1/v2c/v3, RMON, Syslog
Stacking Capability: Up to 4 units
Port Mirroring: Supported
