CD8069504284704 Technical Specifications

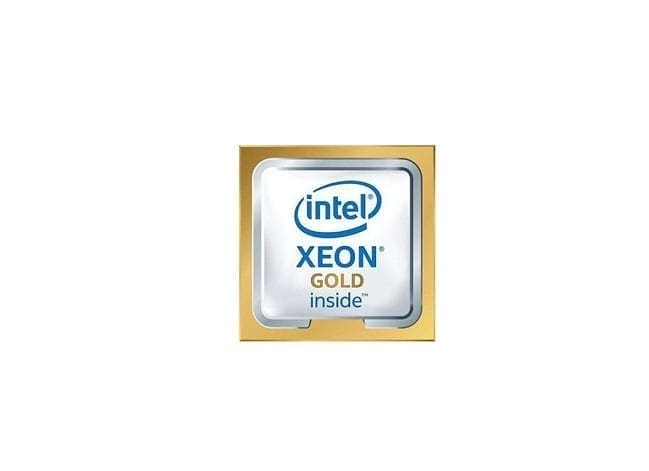

Intel Xeon Gold 6238L 22-Core 2.10GHz 30.25MB Cache Socket FCLGA3647 Processor
Brand Intel
Part No. CD8069504284704
Processor Type Server
Processor Family 2nd Generation Intel Xeon Scalable Processors
Series Xeon Gold Processor
Core Model Type/ProcNo. 6238L
Processor Code Name Cascade Lake
Core Stepping B1
Manufacturing Technology 14 nm
# of Cores 22
# of Threads 44
Clock Speed 2.10 GHz
Max Turbo Frequency 3.70 GHz
L3 Cache Size 30.25 MB
Thermal Power 140 Watts
Max Memory Size 4.5 TB
Memory Types DDR4-2933
Maximum Memory Speed 2933
Memory Channels 6
ECC Memory Supported Yes
Intel Optane DC Persistent Memory Supported Yes
CPU Socket Type LGA 3647
Package Size 76.0mm x 56.5mm
TCASE 92 °C
Embedded Options Available No
Scalability 4S
PCI Express 3.0
Max # of PCI Express Lanes 48
Advanced Technologies Enhanced Intel SpeedStep Technology
Idle States
Intel Deep Learning Boost (Intel DL Boost)
Intel Hyper-Threading Technology
Intel Resource Director Technology (Intel RDT)
Intel Speed Shift Technology
Intel Turbo Boost Technology 2.0
Intel Virtualization Technology (VT-x)
Intel Virtualization Technology for Directed I/O (VT-d)
Intel Volume Management Device (VMD)
Intel vPro Platform Eligibility
Intel VT-x with Extended Page Tables (EPT)
