DUAL-RX5500XT-O4G-EVO Technical Specifications

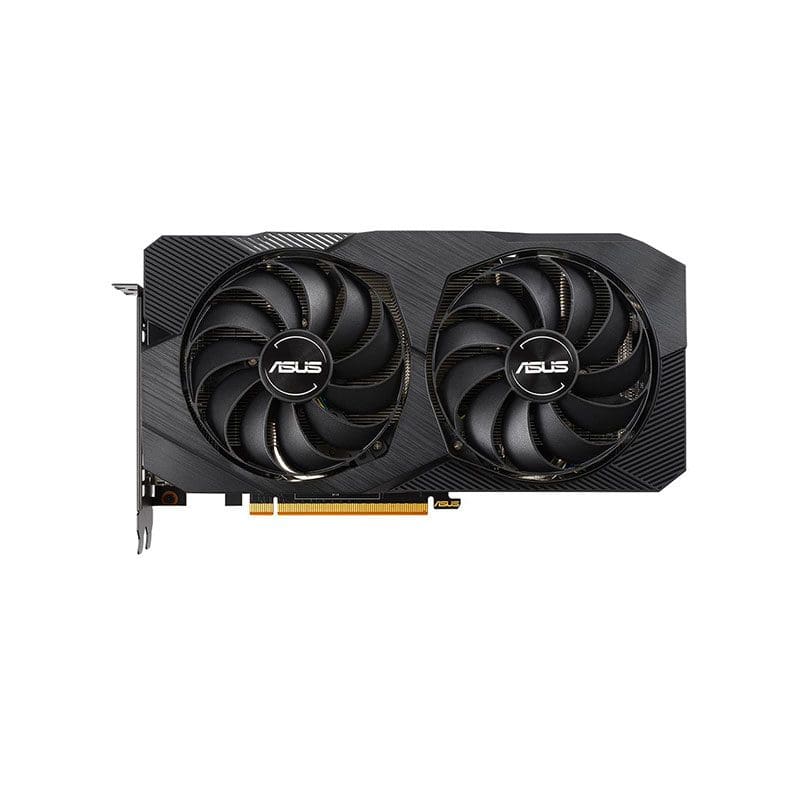

ASUS Dual Radeon RX 5500 XT 4GB 128-Bit GDDR6 PCI Express 4.0 HDCP Ready Video Card
Model
Brand
ASUS
Series
Dual
Model
DUAL-RX5500XT-O4G-EVO
Interface
Interface
PCI Express 4.0
Chipset
Chipset Manufacturer
AMD
GPU Series
AMD Radeon RX 5500 Series
GPU
Radeon RX 5500 XT
Boost Clock
OC Mode: 1865 MHz
Gaming Mode: 1845 MHz
Stream Processors
1408 Stream Processors
Memory
Effective Memory Clock
14 Gbps
Memory Size
4GB
Memory Interface
128-Bit
Memory Type
GDDR6
3D API
OpenGL
OpenGL 4.6
Ports
HDMI
1 x HDMI 2.0b
Multi-Monitor Support
4
DisplayPort
3 x DisplayPort 1.4
Details
Max Resolution
7680 x 4320
Virtual Reality Ready
Yes
Cooler
Double Fans
Thermal Design Power
140W
System Requirements
Recommended PSU: 450W
Power Connector
8-Pin
HDCP Ready
2.3
Features
Features
OC Edition: Boost Clock ~1865 MHz (OC Mode) / ~1845 MHz (Gaming Mode).
Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.
0dB Technology lets you enjoy light gaming in relative silence.
P5X dust resistance offers protection from particle ingress for better durability.
Auto-Extreme Technology uses automation to enhance reliability.
A protective backplate secures components during transportation and installation.
A 144-hour validation program puts cards through a series of stringent tests to ensure compatibility with the latest games.
Form Factor & Dimensions
Max GPU Length
242 mm
Card Dimensions (L x H)
9.53″ x 5.12″
Slot Width
2.5-slot
