ESS-2020-24TC-CONB Technical Specifications

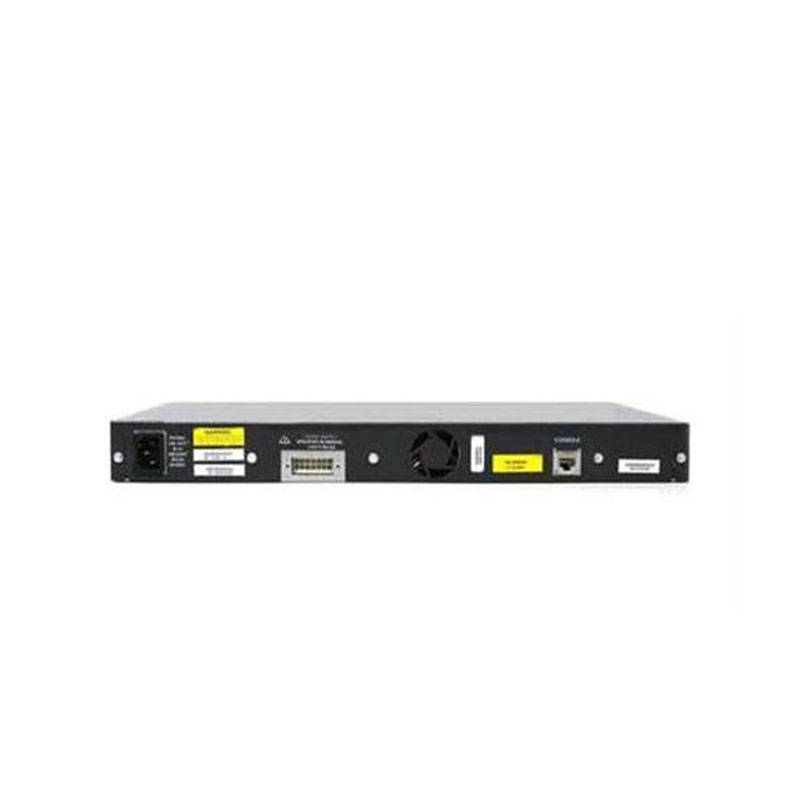

Cisco Embedded Service 2020 Series 16-Ports Expansion CON LAN Base Switch
Manufacturer: Cisco
Manufacturer Part Number: ESS-2020-24TC-CONB
Type: Embedded Service 2020 Series Expansion LAN Base Switch
Ports: 16 x 10/100/1000Base-T RJ-45
Layer: Layer 2 switching
Management: Web-based management, CLI via console
VLAN: IEEE 802.1Q VLAN tagging supported
QoS: Basic traffic prioritization
Security: Port security, ACLs supported
Switching Capacity: 32 Gbps non-blocking
Forwarding Rate: Up to 23.8 Mpps
Jumbo Frames: Supported
Hot Swap: Not applicable (embedded/compact expansion module)
Chassis Support: Works with ESS-2020 series embedded chassis
Form Factor: Desktop/embedded expansion module
LEDs: Link, activity, and power indicators per port
Redundant Power: Not supported
Cooling: Fanless design
STP: STP, RSTP supported
