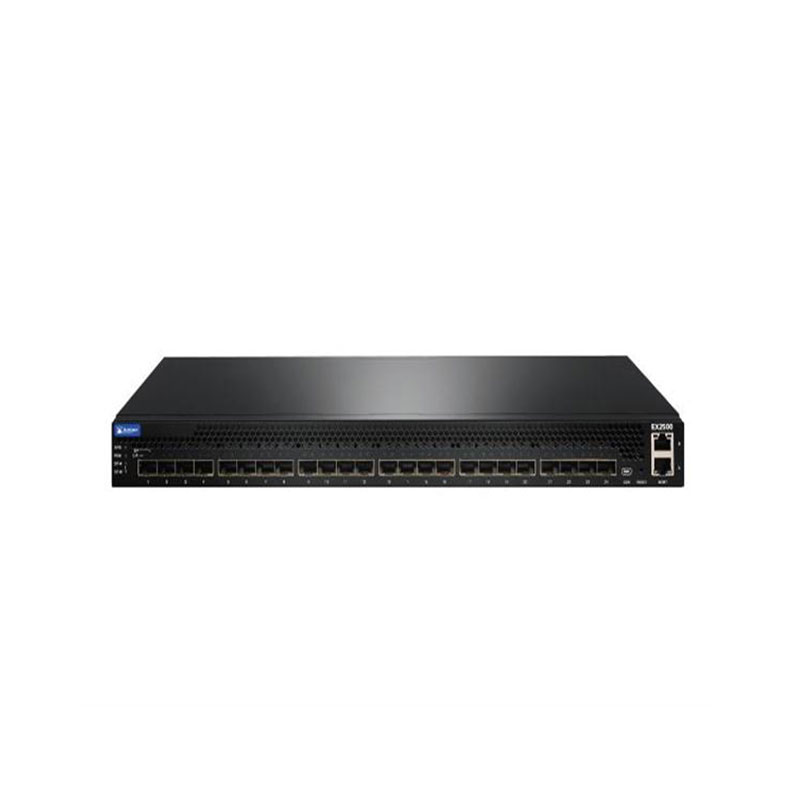

EX2500-24F-BF Technical Specifications
Juniper EX2500 24-Ports 1000Base-X/ 10GBase-X SFP+ Switch
Manufacturer Part Number: EX2500-24F-BF
Brand Name: Juniper
Product Type: Expansion Module
Technical Information
Application/Usage: Data Networking
Media & Performance
Media Type Supported: Optical Fiber
I/O Expansions
Number of Total Expansion Slots: 24
Expansion Slot Type: XFP
VLAN: IEEE 802.1Q VLAN tagging supported
QoS: Advanced traffic prioritization and shaping
Security: ACLs, 802.1X authentication, port security
Switching Capacity: 480 Gbps
Forwarding Rate: Up to 357 Mpps
Jumbo Frames: Supported (up to 9K)
Hot Swap: Not supported (fixed configuration)
Chassis Support: Standalone 1U switch
Form Factor: Rack-mountable 1U
LEDs: Link, activity, status, power
Redundant Power: Dual hot-swappable PSUs
Cooling: Front-to-back or back-to-front airflow options
STP: STP, RSTP, MSTP supported
