EX9208-REDUND-AC Technical Specifications

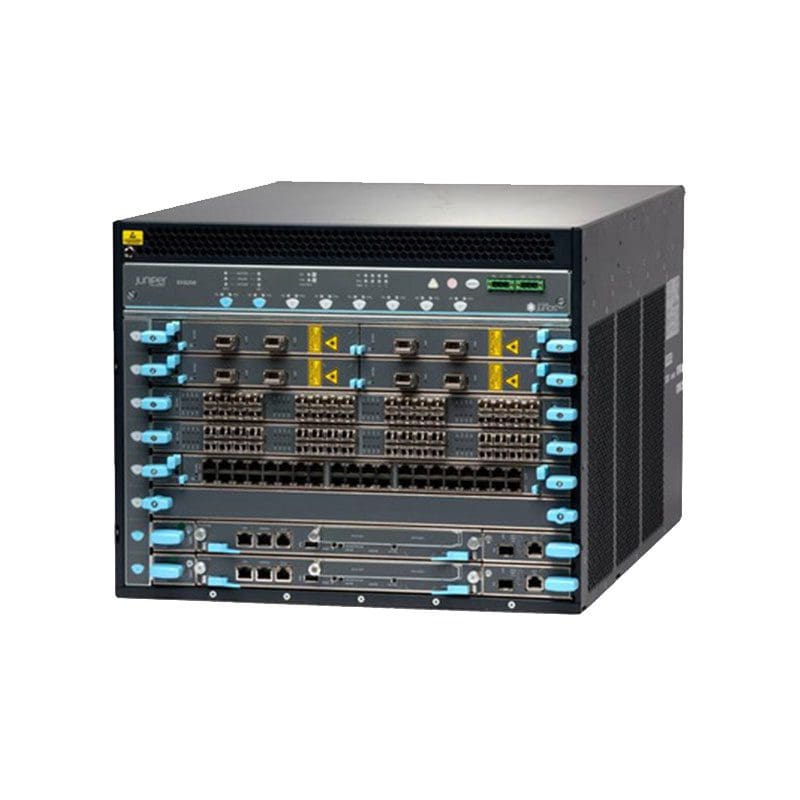

Juniper Networks EX Series 9208 switch managed rack mountable
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks EX Series
Model :9208
Packaged Quantity :1
Chassis
Airflow Direction :Side to side airflow
Built-in Devices :2 x 32 GB SSD, Midplane
Installed Devices / Modules Qty :4
Supported Devices / Modules Qty :10
Processor
Installed Qty :1
Manufacturer :Intel
Clock Speed :1.73 GHZ
RAM
Installed Size :16 GB
Performance
Performance :Per slot per fabric: 240 Gbps, Backplane switching capacity: 4.8 Tbps
Capacity
Capacity :ARP entries: 256000, Virtual interfaces (VLANs): 32000, Multicast entries (IPv4): 256000, QoS hardware queues: 8, IPv4 routing table entries: 1000000, Multicast entries (IPv6): 256000, Policies: 16000, IPv6 routing table entries: 1000000
Networking
Type :Switch
Subcategory :Network hubs and switches
Form Factor :Rack-mountable
