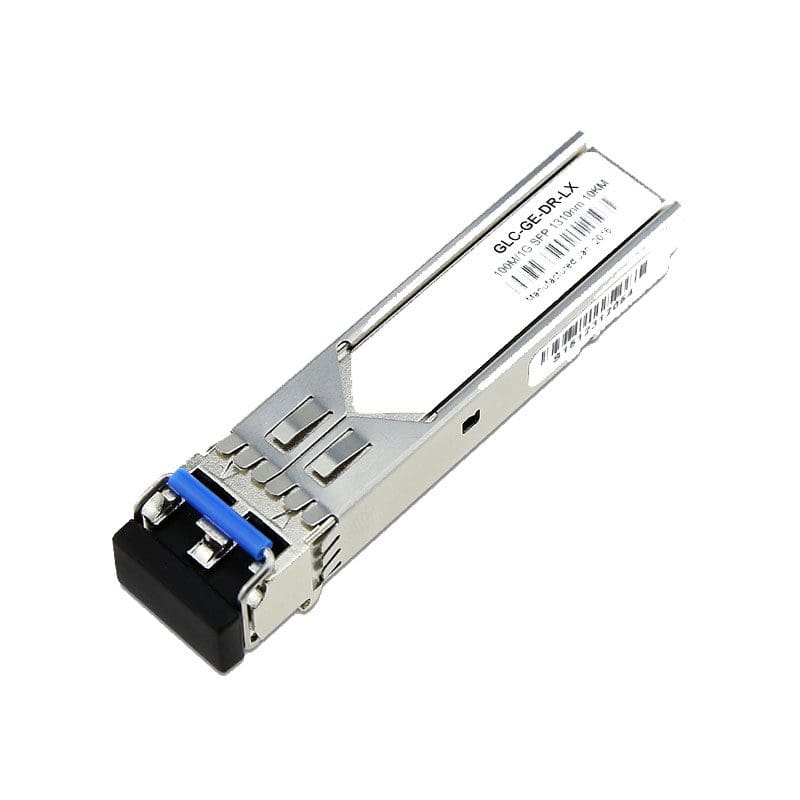

GLC-GE-DR-LXGLC-GE-DR-LX Cisco SFP (mini-GBIC) Transceiver Module
GLC-GE-DR-LX Overview
The industry-standard Cisco Small Form-Factor Pluggable (SFP) Gigabit Interface Converter links your switches and routers to the network. The hot-swappable input/output device plugs into a Gigabit Ethernet port or slot.
$889
GLC-GE-DR-LX Technical Specifications
Cisco – SFP (mini-GBIC) Transceiver Module
Connectors
Left Connector Type :LC single-mode
Environmental Parameters
Max Operating Temperature :185 °F
Min Operating Temperature :23 °F
Header
Brand :Cisco
Compatibility :PC
Manufacturer :CISCO DS HARDWARE DIRECT
Packaged Quantity :1
Product Line :Cisco
Product Type Cisco Transceiver
Interface Provided
Connector Qty :X 2
Connector Type :LC single-mode
Qty :1
Type :Ethernet 1000Base-LX/1000Base-LH
Miscellaneous
Compliant Standards :IEC 60825-1, Laser Class 1, MSA SFF-8472
Networking
Cabling Type :Ethernet 1000Base-LH, Ethernet 1000Base-LX
Compliant Standards :ITU-T G.652
Connectivity Technology :Wired
Data Link Protocol :Gigabit Ethernet
Data Transfer Rate :1 Gbps
Features :Digital Optical Monitoring (DOM) support
Form Factor :Plug-in module
Max Transfer Distance :6.2 miles
Optical Wave Length :1310 nm
Type :SFP (mini-GBIC) transceiver module
Power Device
Power Consumption Operational :1 Watt
