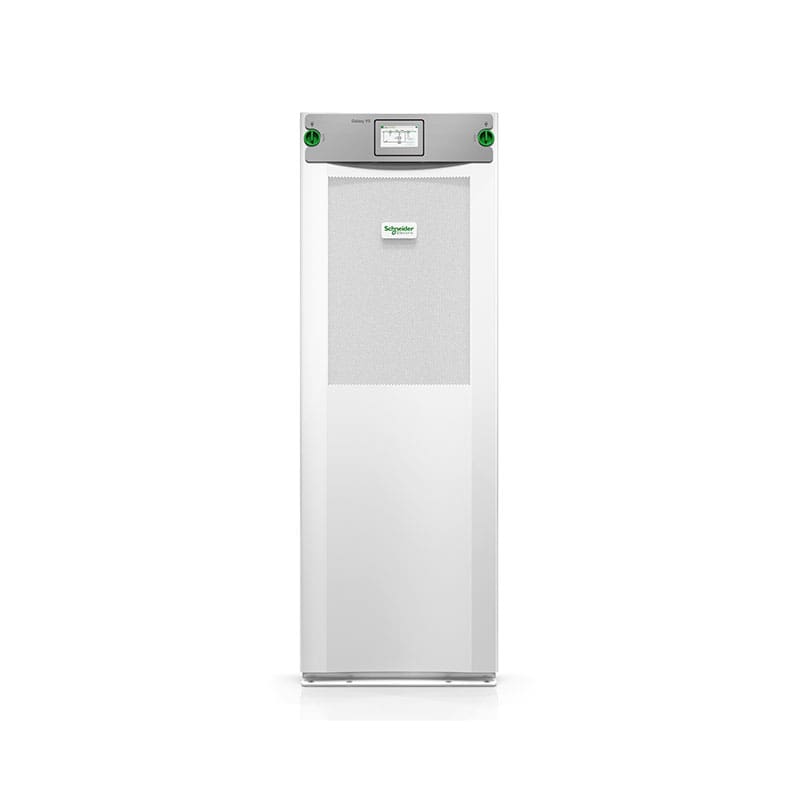

GVSUPS20K0B4GS APC Galaxy VS UPS 20kW 480V for up to 4 internal
GVSUPS20K0B4GS Overview
Galaxy VS UPS 20kW 480V for up to 4 internal 9Ah smart modular battery strings, Start-up 5×8
Highly efficient, easy-to-deploy 20kW, 480V 3-phase UPS that brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. This UPS is for up to 4 smart modular high capacity battery strings, but is supplied without batteries, so you can easily customize the battery runtime. Includes 5×8 start-up service.
Includes: Dust filter, EcoStruxure Ready, Installation Manual, Integrated network management, Start-up service.
$12,739
Buy Now
GVSUPS20K0B4GS Technical Specifications
Galaxy VS UPS 20kW 480V for up to 4 internal
Brand: APC by Schneider Electric
Product Line: Galaxy VS
Manufacturer: Schneider Electric SA
Form Factor: Tower
Batteries: 2
Battery Capacity: 9000 mAH
Battery Characteristics: Sealed
Battery Chemistry: Lead Acid
DC System Voltage: 480 V DC
Input Frequency: 70 hertz
Input Voltage: 208 V AC
Input Voltage Range: 177 V AC – 239 V AC
Network Management: SNMP/HTTP Remote Monitoring, SNMP/Modbus Remote Monitoring
Output Frequency: 60 hertz
Output Voltage: 200 V AC, 208 V AC, 220 V AC
Power Capacity: 20 kilovolt ampere (reactive)
Run Time (Full Load): 10.50 minute
Waveform Type: Sine Wave
Included Software: EcoStruxure
Max Operating Elevation: 3229.33 ft
Max Operating Temperature: 104 degree Fahrenheit
Max Storage Elevation: 9842.52 ft
Phase: Three Phase
Storage Relative Humidity: 0% – 80%
Storage Temperature: 5 degree Fahrenheit
Thermal Dissipation: 1276.62 watt
Transfer Time:” 0 ns
Product Type: Double Conversion Online UPS
Height: 58.5 inch
Weight: 1014.13 lb
Width: 20.5 inch
Depth: 33.4 inch
