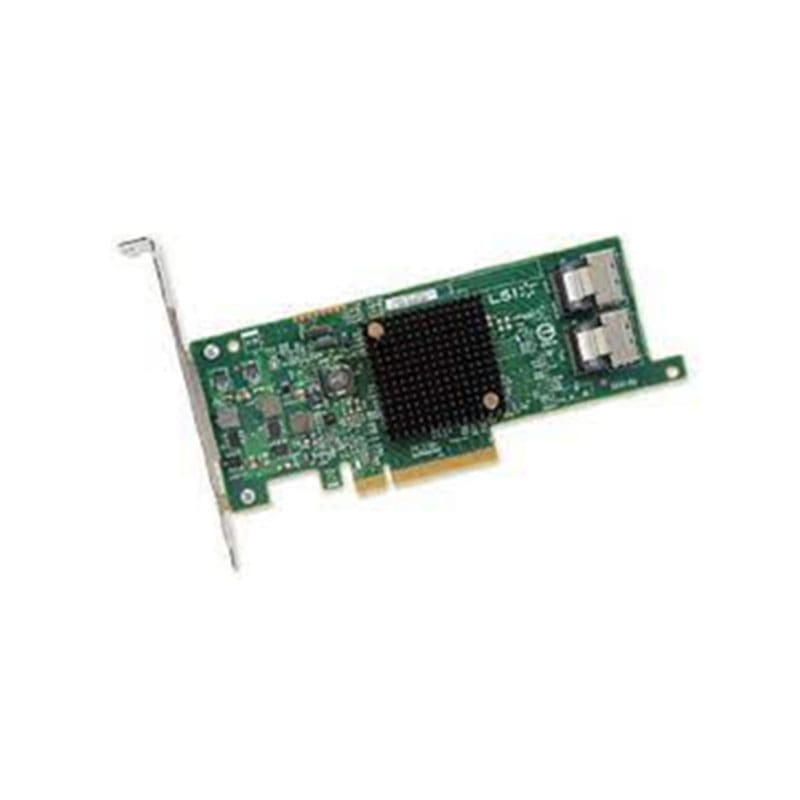

H3-25412-00G LSI Logic 6GBPS 8 Ports Int PCI-E 3.0 SATA SAS Host Bus Adapter
H3-25412-00G Overview
The LSI Logic H3-25412-00G 9207-8i is a Host Bus Adapter (HBA) that allows computer systems to communicate with storage devices like hard disk drives and solid-state drives. It is a powerful HBA that can support up to eight SAS or SATA drives and has a maximum data transfer rate of 6 gigabits per second (Gbps).
The LSI Logic H3-25412-00G 9207-8i Host Bus Adapter uses a PCIe 3.0 interface to connect to the computer’s motherboard. PCIe 3.0 is the latest version of the PCIe interface and provides faster data transfer rates than the previous version, PCIe 2.0.
$75
Buy Now
H3-25412-00G Technical Specifications
LSI Logic 6GBPS 8 Ports Int PCI-E 3.0 SATA SAS Host Bus Adapter
Manufacturer: LSI Logic
Part Number or SKU# H3-25412-00G
Product Type: Controller
Product Name: SAS/SATA
Technical Specifications
Host Bus Type X8 Lane PCI Express® 3.0
Devices Supported 256 Non-raid SAS/SATA Devices
Fusion Mpt Support Fusion Mpt™ 2.0
Internal Connectors 2 Mini-SAS Sff8087
Operating Temperature 0°c To 55°c
Operating Voltage(v) +12v +/-8%, 3.3v +/-8%
Os Supportmicrosoft Windows®, Linux® (suse , Red Hat), Solaris®, Vmware®, Freebsd
Pci Power 9.8w Typical, Airflow 200 Lfm
I/o Controllerlsi Sas2308
Mtbf > 2,000,000 Hours
Operating Humidity 5% To 90% Non-condensing
Data Transfer Rates 6GBPS SAS2.1 Compliant
