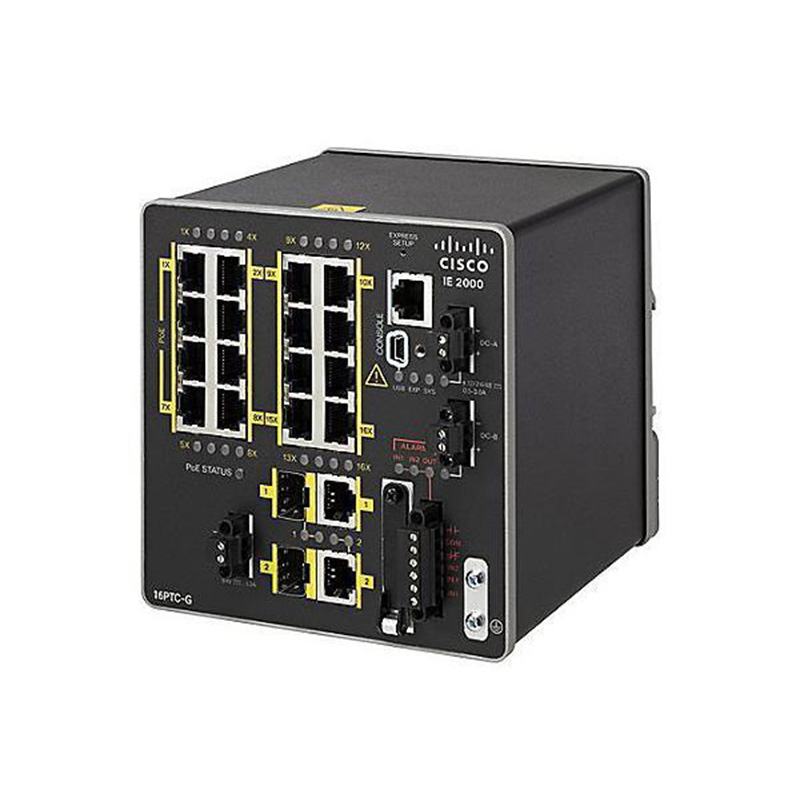

IE-2000-16PTCGE-RF Technical Specifications
Cisco 16-Ports Twisted Pair 10/100Base-TX Manageable Layer2 Rail-Mountable Ethernet Switch
Manufacturer: Cisco
Manufacture Part Number: IE-2000-16PTCGE-RF
Series: Industrial Ethernet 2000
Ports: 16 x 10/100Base-TX RJ-45
Uplink: 2 x Gigabit combo uplinks (RJ-45/SFP)
Switching Layer: Layer 2
Form Factor: Rail-mountable (DIN rail)
Management: Cisco IOS, CLI, SNMP, web device manager
Redundancy: Resilient Ethernet Protocol (REP), STP, RSTP, MSTP
QoS: IEEE 802.1p CoS, traffic shaping, prioritization
Security: 802.1X authentication, ACLs, port security
Power Input: DC power support (redundant)
Operating Temp: Industrial grade (-40°C to 75°C)
Durability: Ruggedized metal enclosure, fanless design
