IE-9310-26S2C-A Technical Specifications

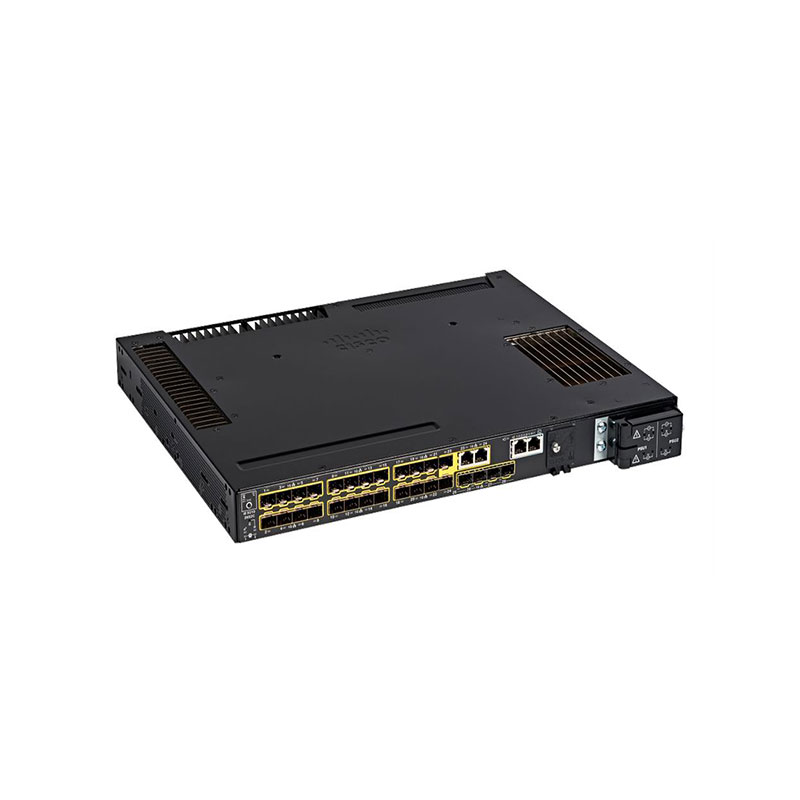

Cisco IE9300 24-Ports GE SFP Rack-mountable Managed Switch
Manufacturer Part Number: IE-9310-26S2C-A
Brand Name: Cisco
Product Line: Catalyst IE9300 Rugged Series
Product Type: Industrial Managed Switch
Total Ports: 26
Port Type: 24 x 1G SFP
Uplink Ports: 2 x 100G QSFP28
Switching Capacity: Up to 1.04 Tbps
Forwarding Rate: Up to 774 Mpps
Layer Support: Layer 2 / Layer 3
MAC Address Table: 32,000 entries
VLAN Support: 4,094 VLANs
Spanning Tree Protocols: STP, RSTP, MSTP
Static & Dynamic Routing: Supported (OSPF, EIGRP, BGP, RIP)
Multicast Support: IGMP Snooping, PIM
Quality of Service: Advanced QoS with traffic shaping and policing
Security: 802.1X, ACLs, MACsec, DHCP Snooping
Redundancy: VRRP, HSRP, ERPS, FlexLink
Management: CLI, SNMP, Web UI, NETCONF, RESTCONF
Stacking/Clustering: Supported
Port Mirroring: Supported
Industrial Compliance: IEC 61850, IEEE 1613
