J8175A Technical Specifications

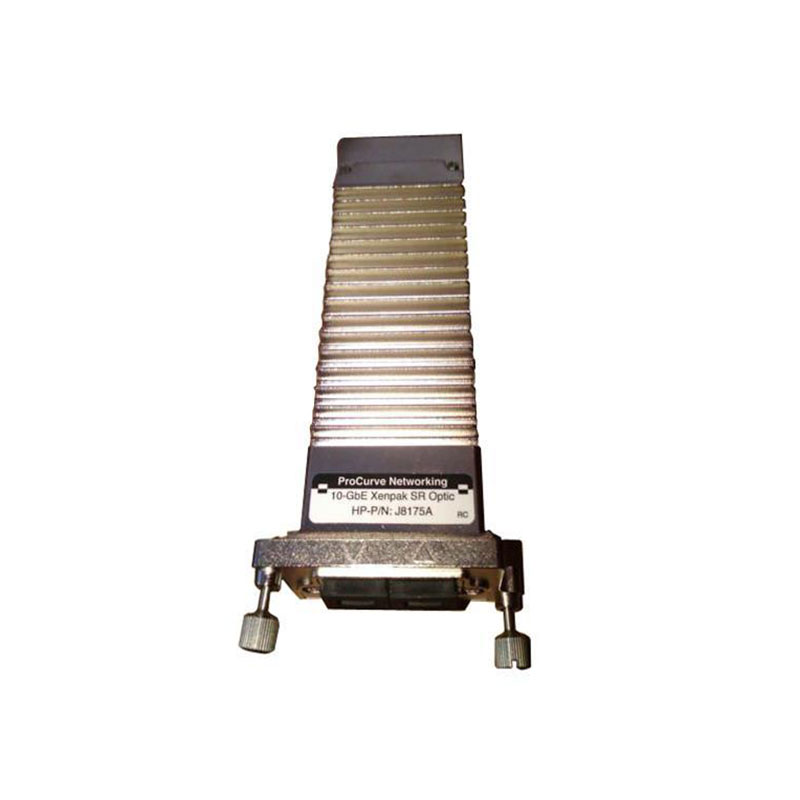

HP ProCurve 10Gbps 10GBase-SR Multi-mode Fiber 300m 850nm Duplex SC Connector XENPAK Transceiver Module
Manufacturer Part Number: J8175A
Brand Name: HP
Product Type: XENPAK Transceiver Module
Data Rate: 10Gbps
Transceiver Type: 10GBase-SR (Short Range)
Media Type Supported: Multi-Mode Fiber (MMF)
Wavelength: 850nm
Connector Type: Duplex SC
Maximum Reach: Up to 300m on OM3 / 400m on OM4 MMF
Form Factor: XENPAK
Hot Swappable: Yes
Digital Diagnostics Monitoring (DOM): Supported
Fiber Strand Count: 2 (duplex)
Compatibility: HP ProCurve 9300 switches and supported networking platforms
Application: High-speed 10Gb Ethernet for data center and enterprise connectivity
Standards Compliance: IEEE 802.3ae 10GBase-SR, XENPAK MSA
Backward Compatibility: Not applicable (XENPAK is dedicated 10Gb module)
Power Consumption: Low power usage typical for XENPAK modules
Operating Temperature: 0°C to 70°C
Storage Temperature: -40°C to 85°C
