J9080-69001 Technical Specifications

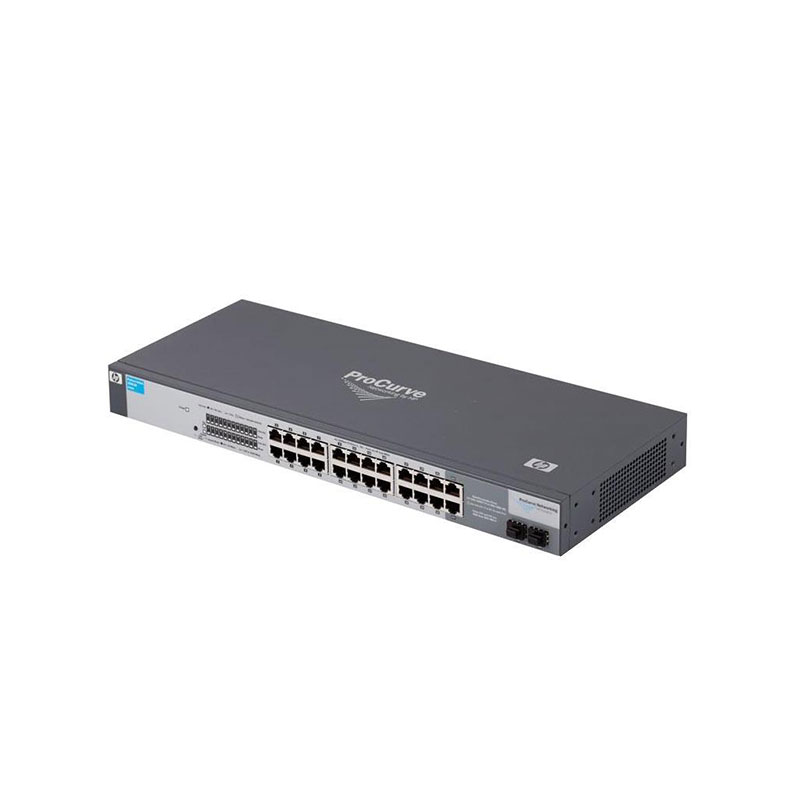

HP ProCurve 1700-24 Ethernet Switch 22 x 10/100Base-TX LAN/ 2 x 10/100/1000Base-T LAN 2 x SFP
Manufacturer Part Number: J9080-69001
Brand Name: HP
Product Line: ProCurve 1700
Product Type: Ethernet Switch
Total Ports: 24
Fast Ethernet Ports: 22 x 10/100Base-TX
Gigabit Ethernet Ports: 2 x 10/100/1000Base-T
Expansion Slots: 2 x SFP
Switching Capacity: 8.8 Gbps
Forwarding Rate: 6.5 Mpps
Layer Support: Layer 2
MAC Address Table: 8000 entries
VLAN Support: 64 VLANs 802.1Q
Spanning Tree: IEEE 802.1D
Flow Control: IEEE 802.3x
Jumbo Frames: Supported
QoS: IEEE 802.1p Priority
Management: Web Based GUI
SNMP: SNMP v1 Support
LED Indicators: Power, Link, Activity
Form Factor: 1U Rackmount
Mounting Options: Rackmount or Desktop
