J9099B Technical Specifications

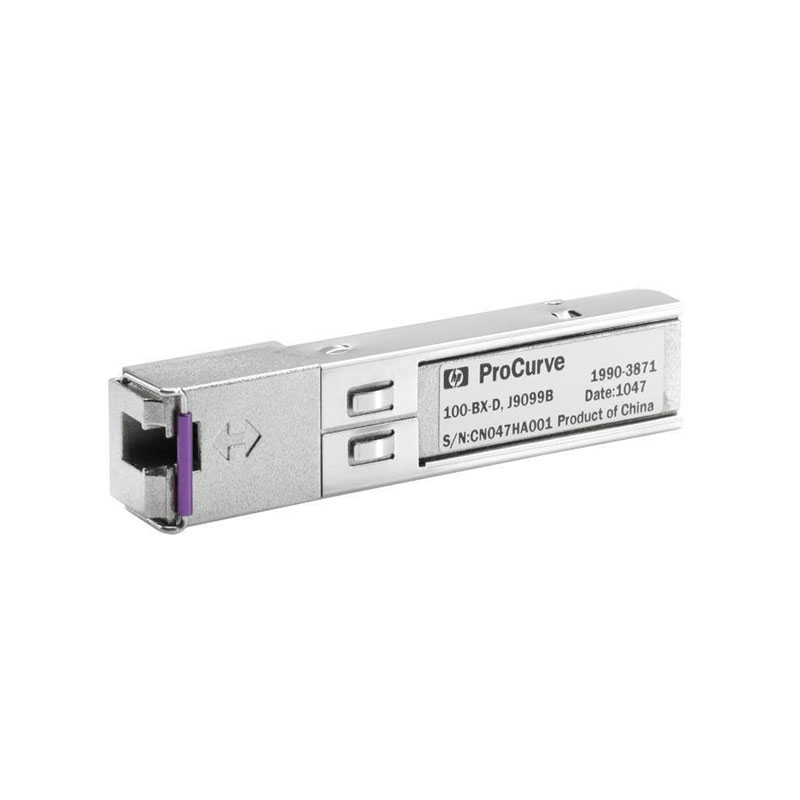

HP 100Mbps 100Base-BX-D Single-mode Fiber 10km 1550nmTx/1310nmRx LC Connector SFP Transceiver Module
Manufacturer Part Number: J9099B
Brand Name: HP
Product Type: SFP Transceiver Module
Data Rate: 100Mbps
Transceiver Type: 100Base-BX-D (Bidirectional)
Media Type Supported: Single-Mode Fiber (SMF)
Wavelength: 1550nm Transmit / 1310nm Receive
Connector Type: LC Simplex
Maximum Reach: Up to 10km
Form Factor: SFP
Hot Swappable: Yes
Digital Diagnostics Monitoring (DOM): Supported
Fiber Strand Count: 1 (BiDi)
Compatibility: HP ProCurve and HP networking switches
Application: Fast Ethernet bidirectional fiber links
Standards Compliance: IEEE 802.3u Fast Ethernet, SFP MSA
Backward Compatibility: Works with Fast Ethernet optical ports
Operating Temperature: 0°C to 70°C
Low Power Consumption: Energy-efficient design
Installation: Plug-and-play module
Use Case: Long-distance Fast Ethernet connections over SMF
Signal Type: Optical bidirectional
Protocol Support: Fast Ethernet (100Base)
