J9138-69001 Technical Specifications

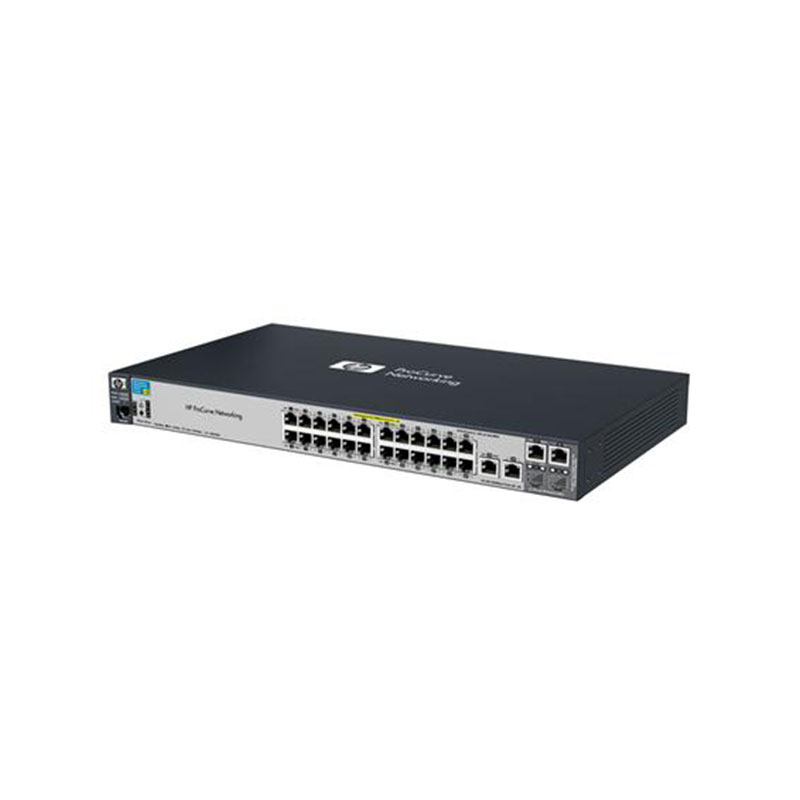

HP Ethernet Switch 2 x SFP Shared 2 x 10/100/1000Base-T 24 x 10/100Base-TX LAN
Manufacturer: HP
Manufacturer Part Number: J9138-69001
Type: Managed Fast Ethernet Switch
Ports: 24 x 10/100Base-TX RJ-45
Additional Ports: 2 x 10/100/1000Base-T uplink + 2 x SFP (shared)
Speed: 10/100 Mbps on access, 10/100/1000 Mbps on uplinks
Layer: Layer 2 switching
PoE: Not supported (non-PoE model)
Management: Web interface, CLI, SNMP
VLAN: IEEE 802.1Q VLAN tagging
QoS: 802.1p traffic prioritization
Security: Port security, 802.1X authentication
Switching Capacity: 12.8 Gbps
Forwarding Rate: Up to 9.5 Mpps
Jumbo Frames: Supported
Hot Swap: Not applicable (fixed switch)
Form Factor: Rack-mountable 1U
LEDs: Power, link/activity, port status
Redundant Power: Not supported (internal PSU only)
Cooling: Fanless silent operation
STP: STP, RSTP, MSTP supported
Multicast: IGMP snooping supported
