J9142B Technical Specifications

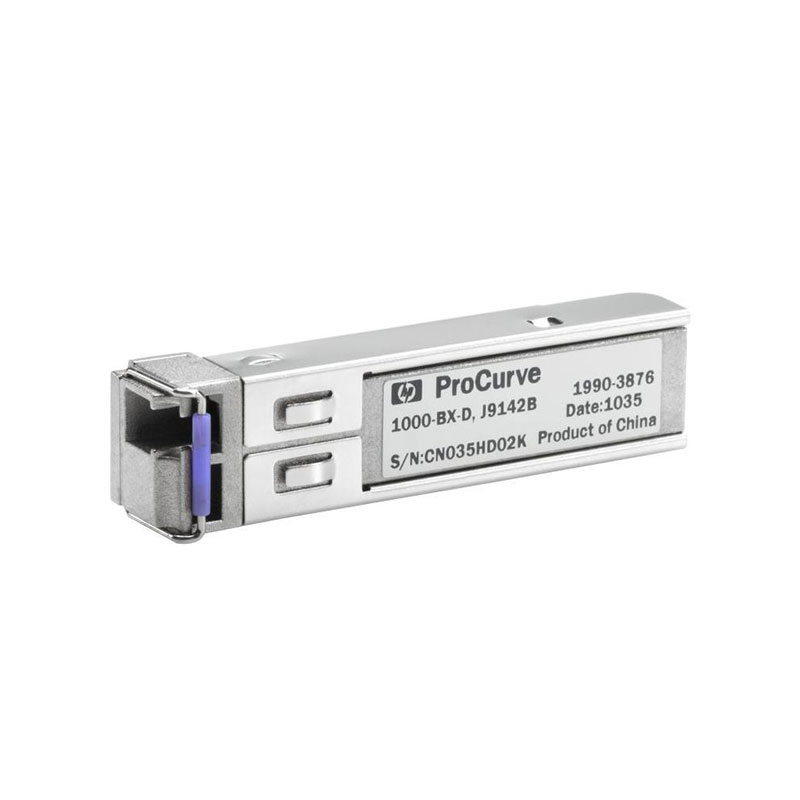

HP ProCurve X112 1Gbps 1000Base-BX-D Single-mode Fiber 20km 1490nmTx/1310nmRx LC Connector SFP Transceiver Module
Manufacturer Part Number: J9142B
Brand Name: HP
Product Name: ProCurve X112 SFP Transceiver Module
Product Type: SFP Transceiver
Data Rate: 1Gbps
Transceiver Type: 1000Base-BX-D (Bidirectional)
Media Type Supported: Single-Mode Fiber (SMF)
Wavelength: 1490nm Transmit / 1310nm Receive
Connector Type: LC Simplex
Maximum Reach: Up to 20km
Form Factor: SFP
Hot Swappable: Yes
Digital Diagnostics Monitoring (DOM): Supported
Fiber Strand Count: 1 (BiDi)
Compatibility: HP ProCurve and HPE Networking Switches
Application: Gigabit Ethernet bidirectional fiber links
Standards Compliance: IEEE 802.3z, SFP MSA
Backward Compatibility: Gigabit Ethernet optical ports
Operating Temperature: 0°C to 70°C
Low Power Consumption: Optimized for energy efficiency
Installation: Plug-and-play module
Use Case: Long-distance Gigabit Ethernet over single fiber
Signal Type: Optical bidirectional transmission
