J9264-61101 Technical Specifications

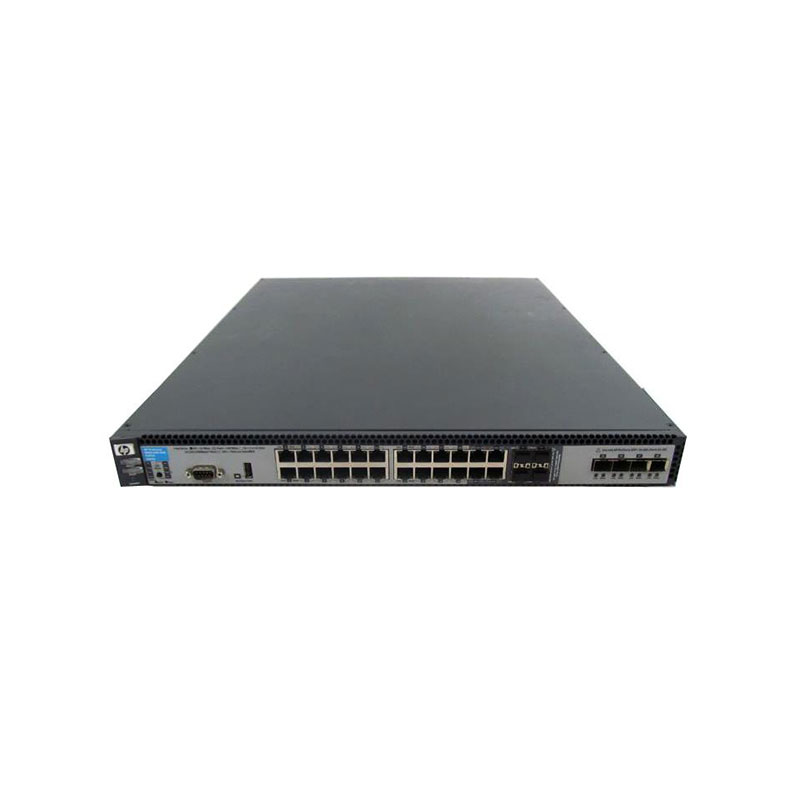

HP Procurve 6600-24G-4Xg 24-Ports 10/100/1000 RJ-45 Autosensing Manageable Rack-mountable Ethernet Switch
Manufacturer Part Number: J9264-61101
Brand Name: HP
Product Line: ProCurve 6600-24G-4XG
Product Type: Managed Gigabit Ethernet Switch
Total Ports: 24
Gigabit Ethernet Ports: 24 x 10/100/1000Base-T RJ-45 Autosensing
Uplink/Expansion Ports: 4 x 10GbE XG SFP+
Layer Support: Layer 2 / Layer 3 Lite
Switching Capacity: 128 Gbps
Forwarding Rate: 95 Mpps
MAC Address Table: 32,000 entries
VLAN Support: Up to 512 VLANs (IEEE 802.1Q)
Spanning Tree Protocols: IEEE 802.1D, 802.1w, 802.1s
Static Routing: IPv4 Supported
Link Aggregation: IEEE 802.3ad LACP
Flow Control: IEEE 802.3x
Quality of Service: 8 Priority Queues, IEEE 802.1p
Security: IEEE 802.1X, ACLs
Management: Web GUI, CLI, SNMP v1/v2c/v3
RMON Monitoring: 4 Groups Supported
