J9575-61101 Technical Specifications

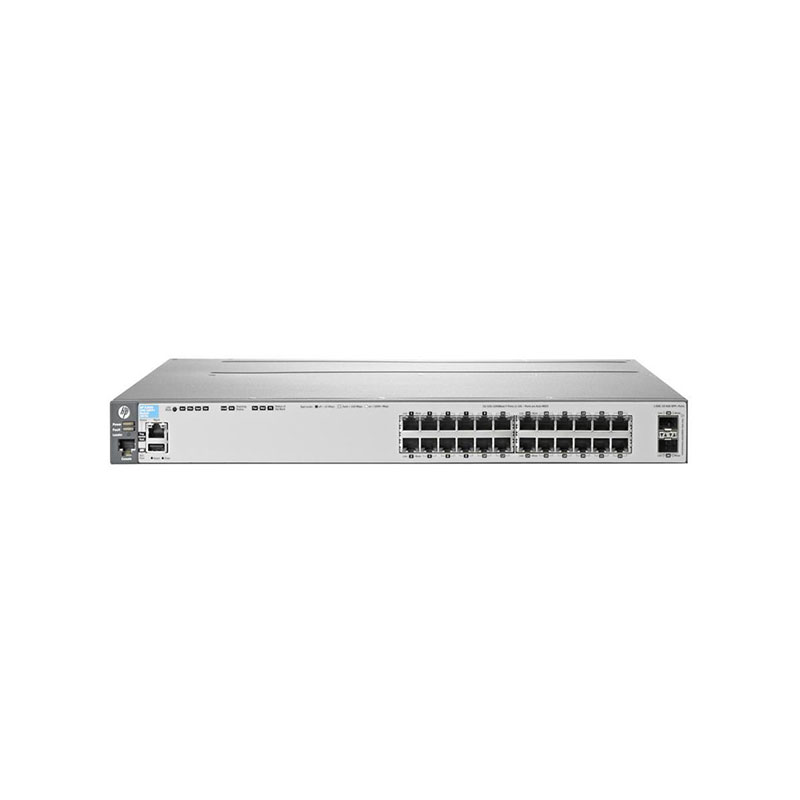

HP 24-Ports Layer-4 Managed Stackable Gigabit Ethernet Switch
Manufacturer: HP
Manufacturer Part Number: J9575-61101
Type: Layer-4 Managed Stackable Gigabit Ethernet Switch
Ports: 24 x 10/100/1000Base-T RJ-45
Uplinks: 4 x SFP slots for fiber or copper uplinks
Speed: 10/100/1000 Mbps per port
Layer: Layer 2 + Layer 3 Lite + Layer 4 traffic management
Management: Web interface, CLI, SNMP, ProCurve Manager
VLAN: IEEE 802.1Q VLAN tagging
QoS: Layer 4-based traffic prioritization, 802.1p
Security: ACLs, 802.1X authentication, port security
Switching Capacity: 56 Gbps
Forwarding Rate: Up to 41.6 Mpps
Jumbo Frames: Supported
Hot Swap: Not applicable (fixed switch)
Form Factor: Rack-mountable 1U
LEDs: Port link/activity, system, power indicators
Redundant Power: Optional external RPS support
Cooling: Internal fans with chassis airflow
STP: STP, RSTP, MSTP supported
Multicast: IGMP snooping, MLD snooping
