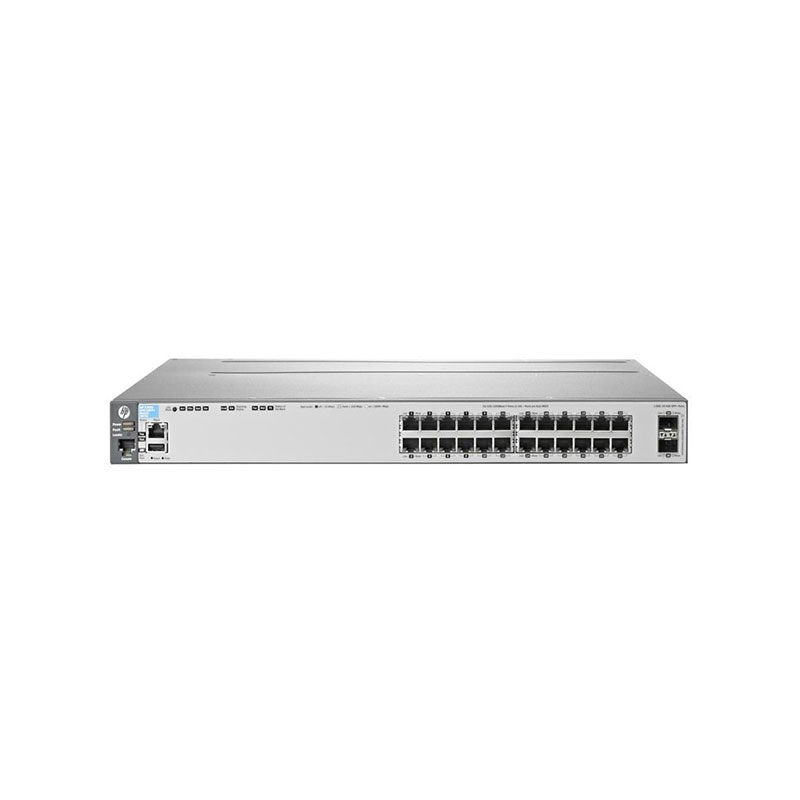

J9575A 3800 Technical Specifications
HP Layer 4 Managed 10 Gigabit Ethernet 24 Ports Switch
Manufacturer: HP
Manufacturer Part Number: J9575A 3800
Ports: 24 x 10GbE SFP+
Uplinks: 4 x SFP+ uplink slots
Speed: 10 Gbps per port
Layer: Layer 2 + Layer 3 Lite + Layer 4 traffic management
Management: Web interface, CLI, SNMP, ProCurve Manager
VLAN: IEEE 802.1Q VLAN tagging
QoS: Layer 4-based traffic prioritization, 802.1p
Security: ACLs, 802.1X authentication, port security
Switching Capacity: 480 Gbps
Forwarding Rate: Up to 357 Mpps
Jumbo Frames: Supported (up to 9K)
Hot Swap: Not applicable (fixed switch)
Form Factor: Rack-mountable 1U
LEDs: Port link/activity, system, power indicators
Redundant Power: Optional external RPS support
Cooling: Internal fans, front-to-back airflow
STP: STP, RSTP, MSTP supported
Multicast: IGMP snooping, MLD snooping
