J9586-61001 Technical Specifications

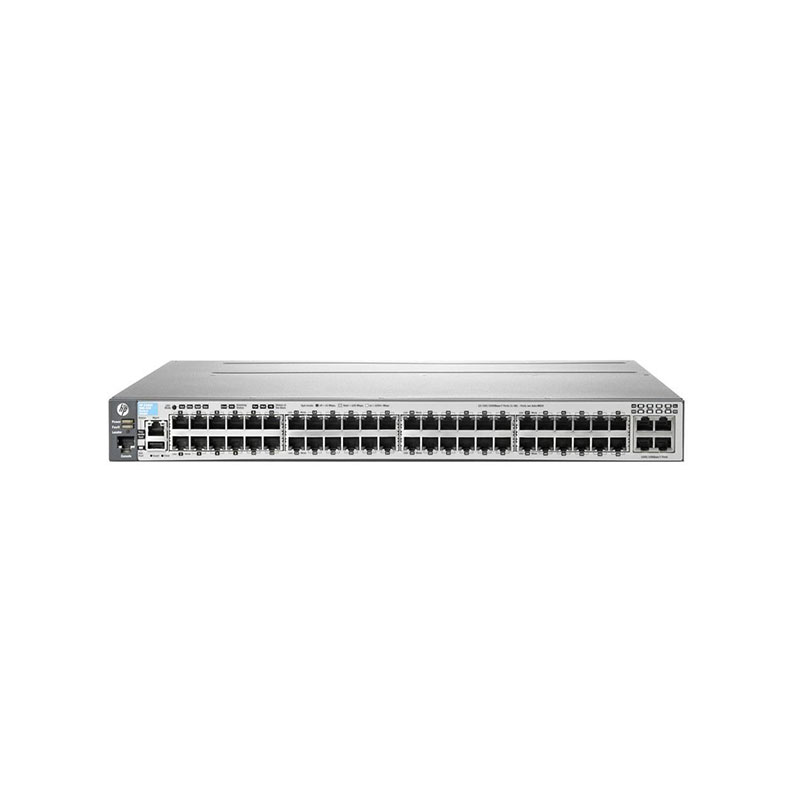

HP 3800-48G-4XG 48-Ports 10/100/1000 RJ-45 Manageable Layer4 Rack-mountable Switch
Manufacturer Part Number: J9586-61001
Brand Name: HP
Product Line: HP 3800 Series
Product Type: Layer 4 Managed Gigabit Ethernet Switch
Total Ports: 48
Gigabit Ethernet Ports: 48 x 10/100/1000Base-T RJ-45
Uplink/Expansion Ports: 4 x 10GbE XG SFP+
Layer Support: Layer 2 / Layer 3 / Layer 4
Switching Capacity: 176 Gbps
Forwarding Rate: 130 Mpps
MAC Address Table: 32,000 entries
VLAN Support: Up to 4,094 VLANs (IEEE 802.1Q)
Spanning Tree Protocols: IEEE 802.1D, 802.1w, 802.1s
Static Routing: IPv4 Supported
Link Aggregation: IEEE 802.3ad LACP
Flow Control: IEEE 802.3x
Quality of Service: 8 Priority Queues, IEEE 802.1p
Security: IEEE 802.1X, ACLs, Port Security
Management: Web GUI, CLI, SNMP v1/v2c/v3
RMON Monitoring: 4 Groups Supported
Port Mirroring: Port and VLAN Based
