J9727AS Technical Specifications

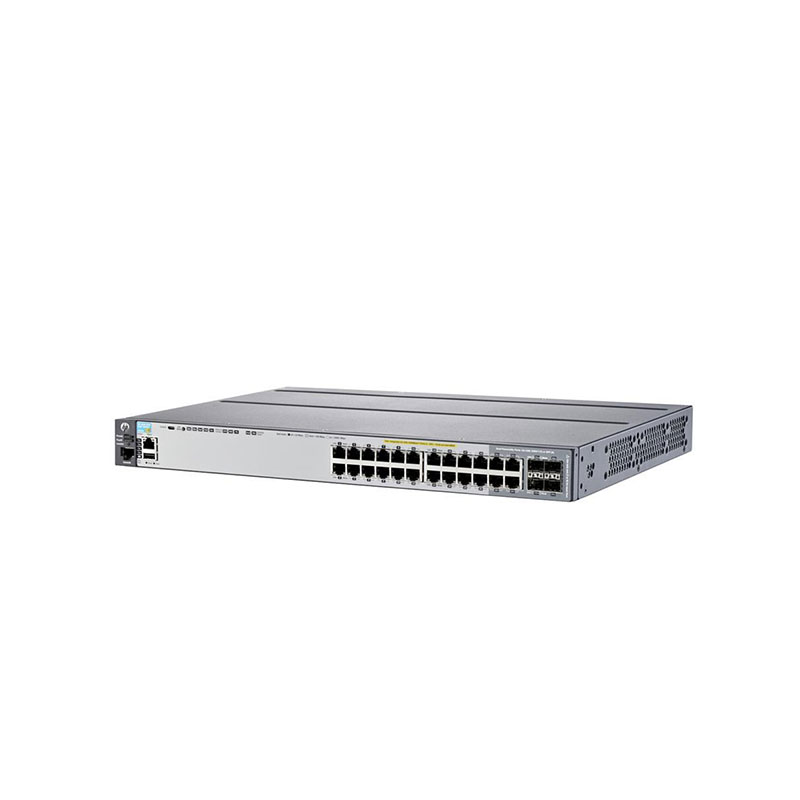

HPE 2920-24G-PoE+ Manageable Rack-Mountable 24 Ports Switch
Manufacturer Part Number: J9727AS
Brand Name: HPE
Product Line: HPE 2920 Series
Product Type: Layer 3 Managed Gigabit Ethernet Switch
Total Ports: 24
Ethernet Ports: 24 x 10/100/1000Base-T RJ-45
Uplink Ports: 4 x Gigabit SFP (Combo)
PoE Support: IEEE 802.3af / 802.3at PoE+
PoE Power Budget: ~370W (varies by configuration)
Layer Support: Layer 2 / Layer 3
Switching Capacity: 128 Gbps
Forwarding Rate: 95.2 Mpps
MAC Address Table: 16,000 entries
VLAN Support: Up to 4,094 VLANs (IEEE 802.1Q)
Spanning Tree Protocols: IEEE 802.1D, 802.1w, 802.1s
Routing Support: Static IPv4 / IPv6, RIP
Link Aggregation: IEEE 802.3ad LACP
Flow Control: IEEE 802.3x
Quality of Service: 8 Hardware Queues, IEEE 802.1p, DSCP
