J9729-61101 Technical Specifications

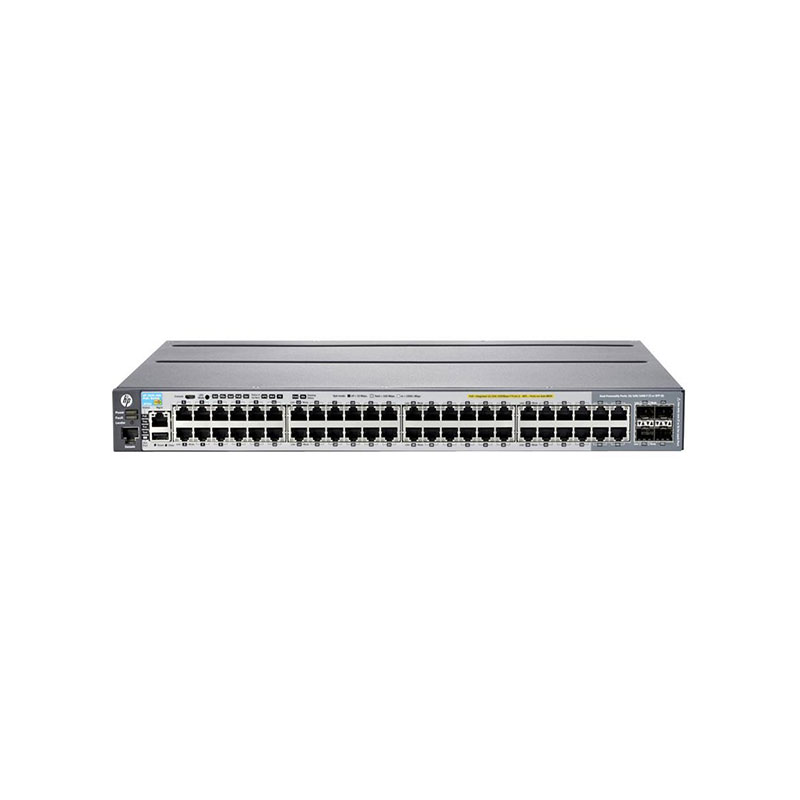

HP ProCurve 48-Ports 10/100/1000 Rj-45 PoE+ Manageable Desktop Rack-mountable Stackable Gigabit Ethernet Switch
Manufacturer Part Number: J9729-61101
Brand Name: HP
Product Type: Layer 3 Managed Gigabit Ethernet Switch
Total Ports: 48
Ethernet Ports: 48 x 10/100/1000Base-T RJ-45
Uplink Ports: 4 x Gigabit SFP (Combo)
PoE Support: IEEE 802.3af / 802.3at PoE+
PoE Power Budget: ~382W (depending on PSU)
Layer Support: Layer 2 / Layer 3
Switching Capacity: 176 Gbps
Forwarding Rate: 130.9 Mpps
MAC Address Table: 16,000 entries
VLAN Support: Up to 4,094 VLANs (IEEE 802.1Q)
Spanning Tree Protocols: IEEE 802.1D, 802.1w, 802.1s
Routing Support: Static IPv4/IPv6, RIP
Link Aggregation: IEEE 802.3ad LACP
Flow Control: IEEE 802.3x
Quality of Service: 8 Queues, IEEE 802.1p, DSCP
Security Features: IEEE 802.1X, ACLs, Port Security
Management Options: Web GUI, CLI, SNMP v1/v2c/v3
Monitoring: RMON (4 groups), Port/VLAN Mirroring
