Home›Network Switches›HP Network Switch›J9774-61001 HP ProCurve 2530 8-Ports 10/100/1000 RJ-45 PoE+ Manageable Layer2 Switch
HP-J9774-61001

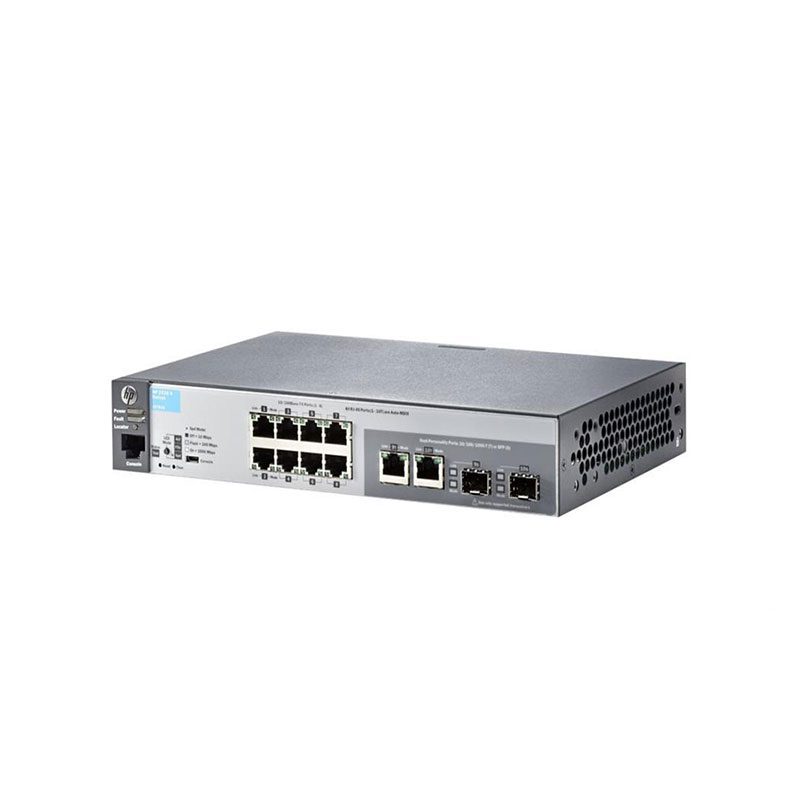

J9774-61001 HP ProCurve 2530 8-Ports 10/100/1000 RJ-45 PoE+ Manageable Layer2 Switch

J9774-61001 Overview

The HP J9774-61001 is a compact, managed Layer 2 Gigabit Ethernet switch designed for small businesses, branch offices, or edge deployments requiring both high-speed connectivity and Power over Ethernet Plus (PoE+) support. It features 8 RJ-45 10/100/1000Base-T ports capable of delivering PoE+ (IEEE 802.3at) to power devices such as IP phones, wireless access points, and security cameras directly over the network cabling.Being a Layer 2 managed switch, the J9774-61001 supports VLANs, link aggregation, Quality of Service (QoS), Spanning Tree Protocol (STP), and access control lists (ACLs), enabling efficient traffic management, network segmentation, and secure operation. It provides easy management via web interface, CLI, or SNMP, giving administrators full control over network traffic and device prioritization.

Wishlist
Compare
Availability: In Stock
SKU:J9774-61001
Brand:

J9774-61001 Technical Specifications

HP ProCurve 2530 8-Ports 10/100/1000 RJ-45 PoE+ Manageable Layer2 Desktop Wall-mountable and Rack-mountable Ethernet Switch

Manufacturer: HP
Manufacturer Part Number: J9774-61001
Performance
Product Type: Switch
Form Factor: Rack-mountable
Data Link Protocol: Gigabit Ethernet
Number of Port(s): 8
Ports Type: Expansion Slot(s),PoE,RJ-45,SFP
VLAN: IEEE 802.1Q VLAN tagging
QoS: 802.1p traffic prioritization
Security: ACLs, 802.1X authentication, port security
Switching Capacity: 20 Gbps
Forwarding Rate: Up to 14.88 Mpps
Jumbo Frames: Supported (up to 9K)
Hot Swap: Not applicable (fixed switch)
Form Factor: Desktop, wall-mountable, or rack-mountable
LEDs: Port link/activity, PoE status, system, power
Redundant Power: Optional external RPS support
Cooling: Fanless for desktop/wall-mount or internal fan for rack deployment
STP: STP, RSTP, MSTP supported
Multicast: IGMP snooping, MLD snooping
